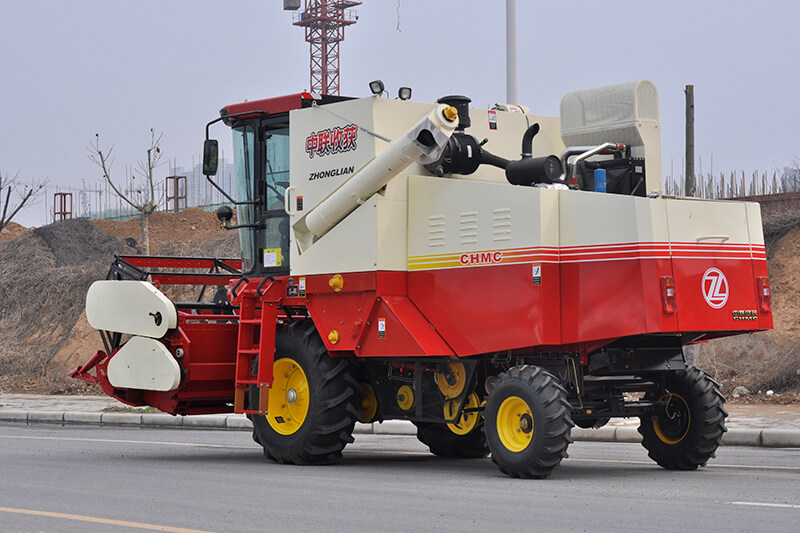

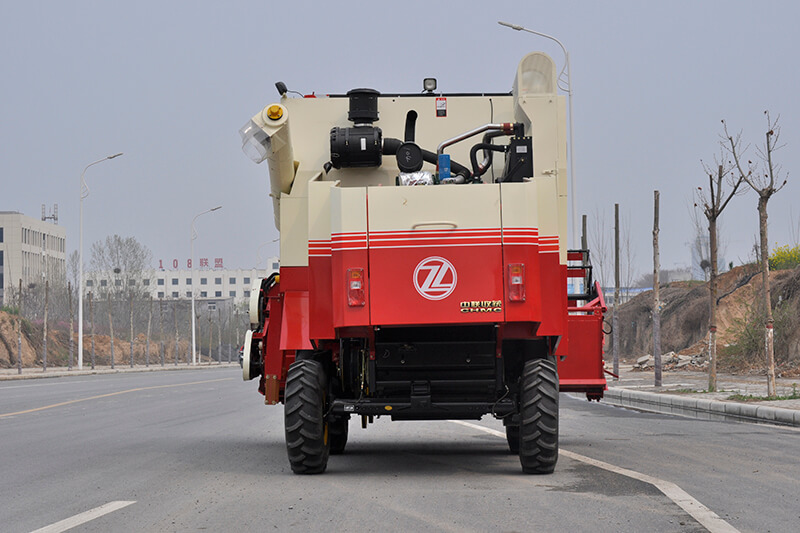

Soybean Combine Harvester
Basic Info
Model NO.: 4LZ-8SColor: Red+WhiteCondition: NewApplication Field: AgricultureAfter-Sales Service Provided: Engineers Available to Service Machinery OverseasFunction: Cutting, Threshing, CrushingPower: 150 HPStructural Style: Self-Propelled Full-Feed Combine HarvesterTrademark: CHMCTransport Package: ContainerSpecification: 6700*3500*3250 mmOrigin: Henan, ChinaHS Code: 8433510090
Product Description
Customer Question & Answer
Product Information:
| Type No. | 4LZ-8 | |
| Structural style | full feed self-propelled wheel type | |
| Function | reap, thresh, crash the straw | |
| Harvest crops | soybean, sorghum, millet | |
| Size ( L, W, H ) | 6700*3500*3250 mm | |
| Net weight | 5510 kg | |
| Gear box | mechanical | |
| Engine power | 150 hp | |
| Engine speed | 2300r/min | |
| Cutting width | 3250 mm | |
| Cutting table style | flexible cutting table | |
| Minimum ground clearance | ground harvesting | |
| Work efficiency | 0.8-1.2 hectare/hour | |
| Oil tank | 222L | |
| Oil consumption | ≤20kg/hectare | |
| Feed quantity | 8.0 kg/s | |
| Total loss rate | ≤3 % | |
| Broken rate | ≤1.0 % | |
| Impurity rate | ≤2.0 % | |
| Stubble height | ≤50mm | |
| Unloading way | mechanical unloading | |
| Unloading height | 2600 mm | |
| Unloading tube | 2500/2800 mm | |
| Grain tank volume | 2.2 m³ | |
| Type of drive | 2 wheels drive | |
| Transportation and Package | 1 set in a 40′HC (dis-assembled ) | |
Product Features:
* 3.25 m flexible cutting table, adjust cutting table to fit the ground condition, low stubble.
* Use 150hp engine, more powerful.The front and back wheel distance suit planting structure of 60-65cm.
* Strengthen the wheels, forged steel ring gear, reliable walking.
* Multi-level cleaning system, connect blowing and inhaling, make the grain more clean, no grass, no chaff.
* Adjustable drum speed and special drum machine concave plate, suitable for harvesting of different crops, low
grain broken rate.
* Wider grain elevator, enlarged granary, reduce unloading grain times.Lengthened unloading pipe, unloading grain
height up to 2.6 meters.
* fully enclosed cab, reduce the noise and shake, make the driver feel more comfortable.
* Lengthen the middle bridge, better and clearer field of vision for the driver.
* The machine is suitable for harvesting of soybean, rice, wheat, sorghum, millet and so on.
* The machine has good performance, compact structure, easy operation, safe and reliable. The machine adapts
to all the land that machine can handle.

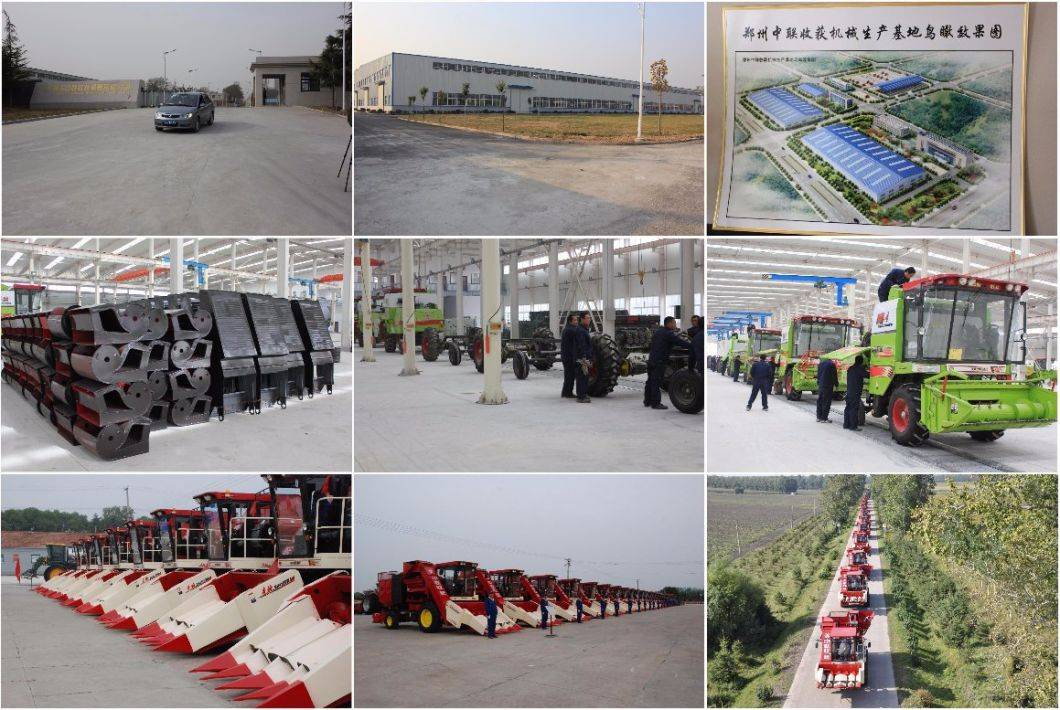

Factory:

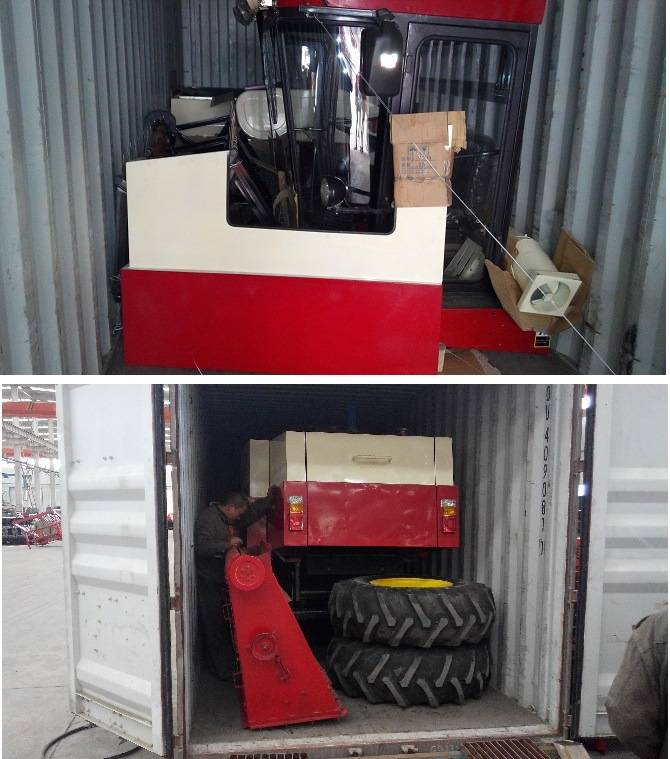

one machine in one 40 feet container
