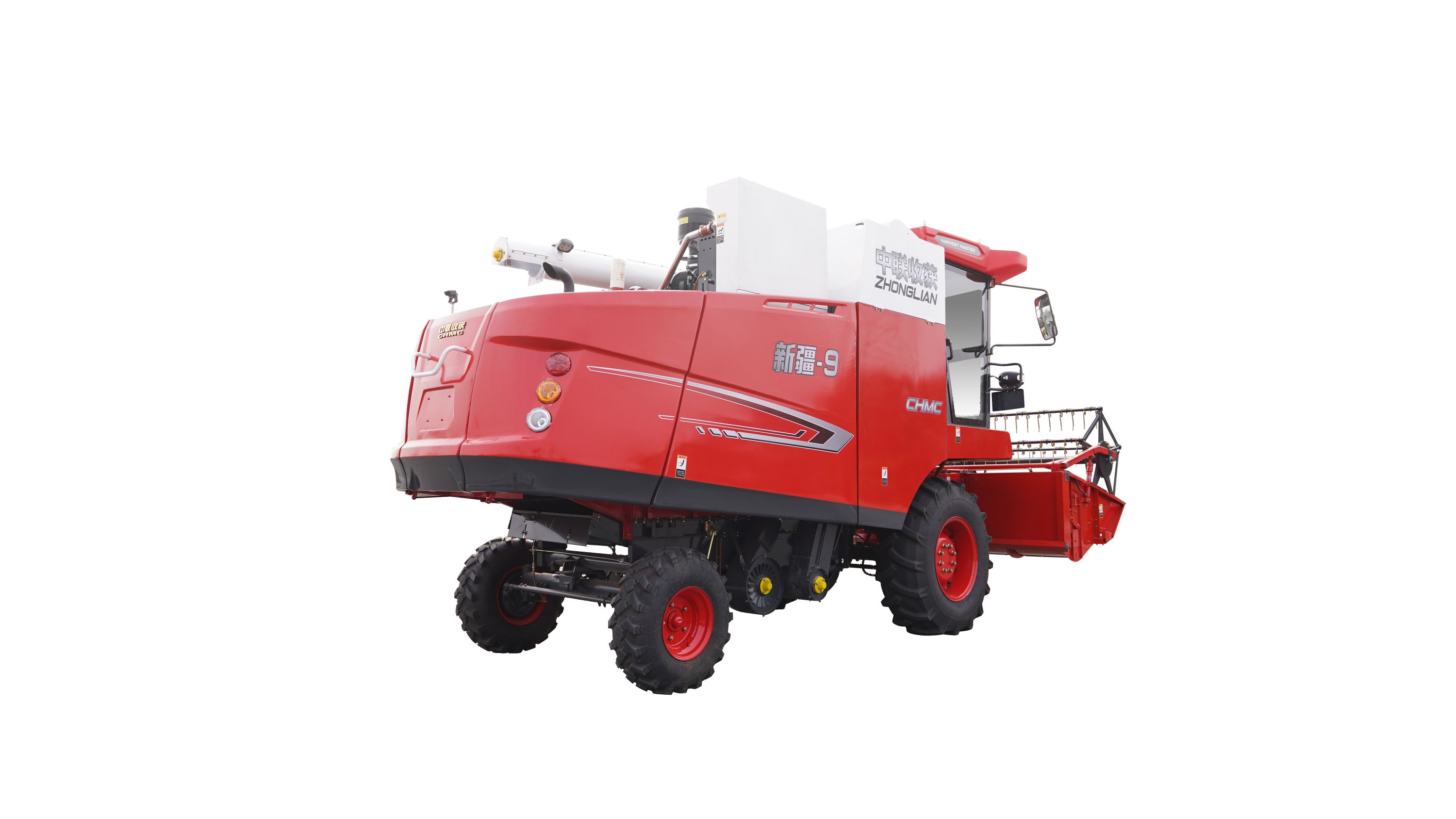

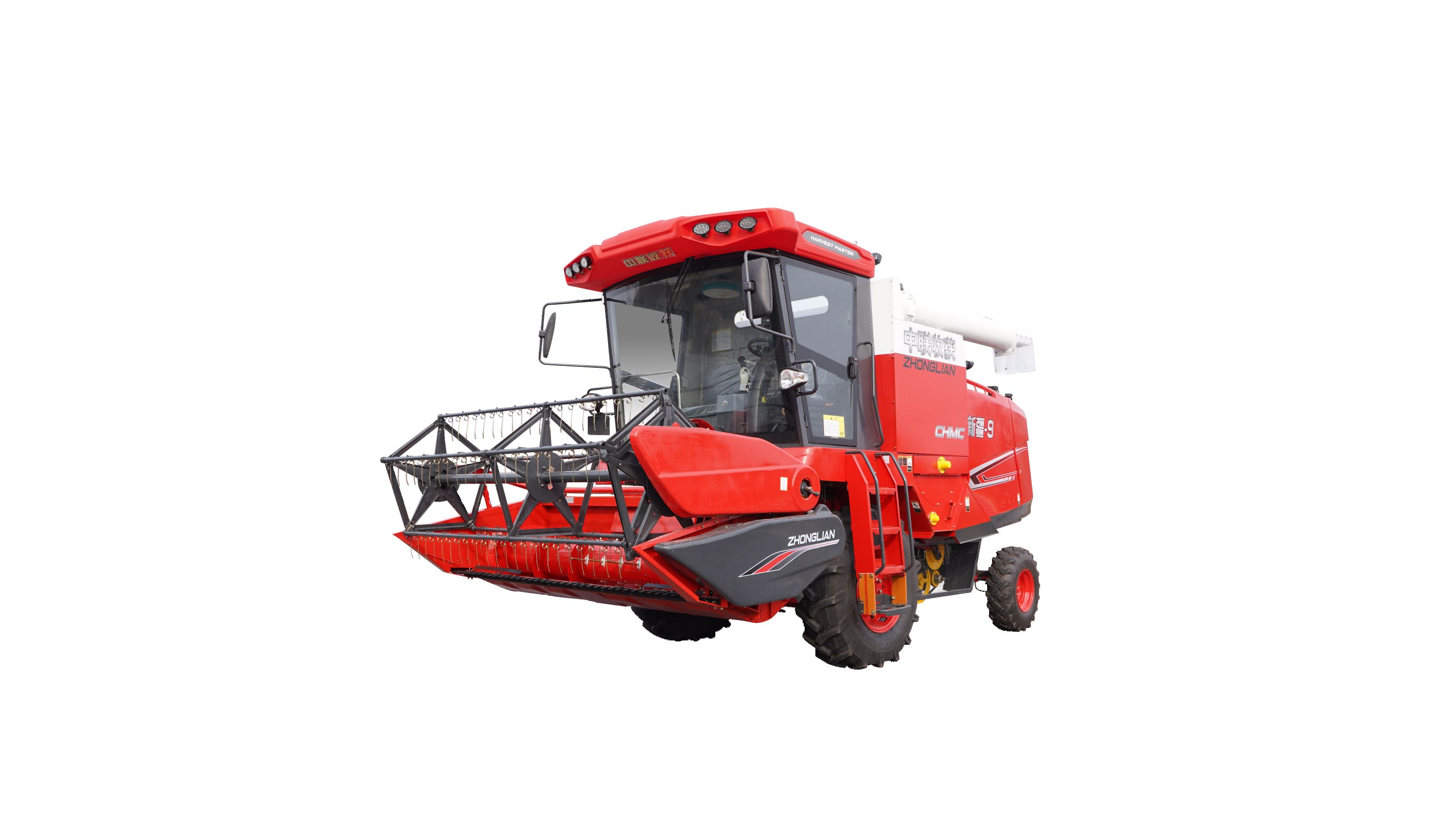

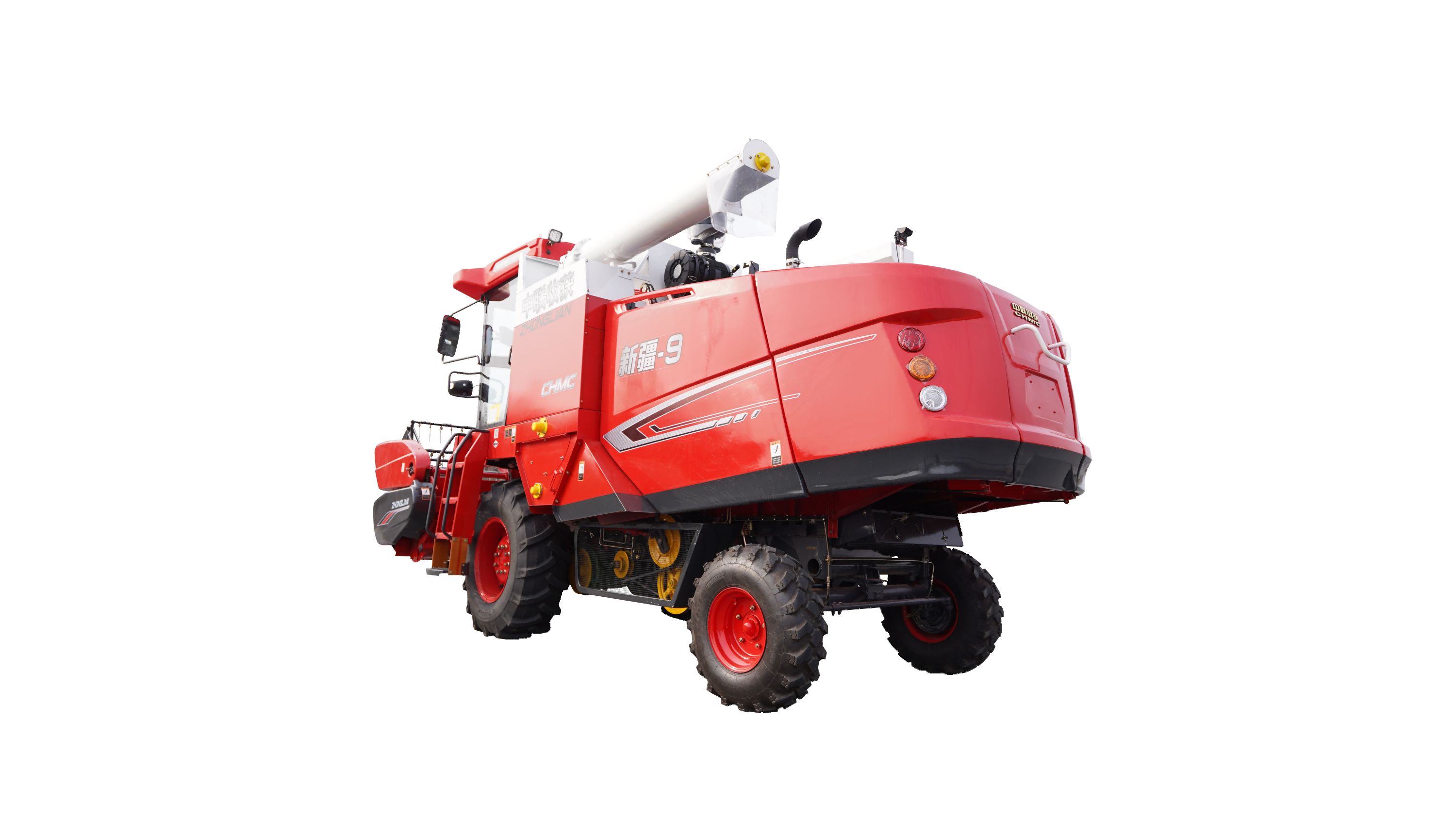

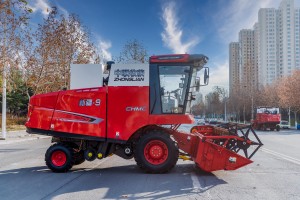

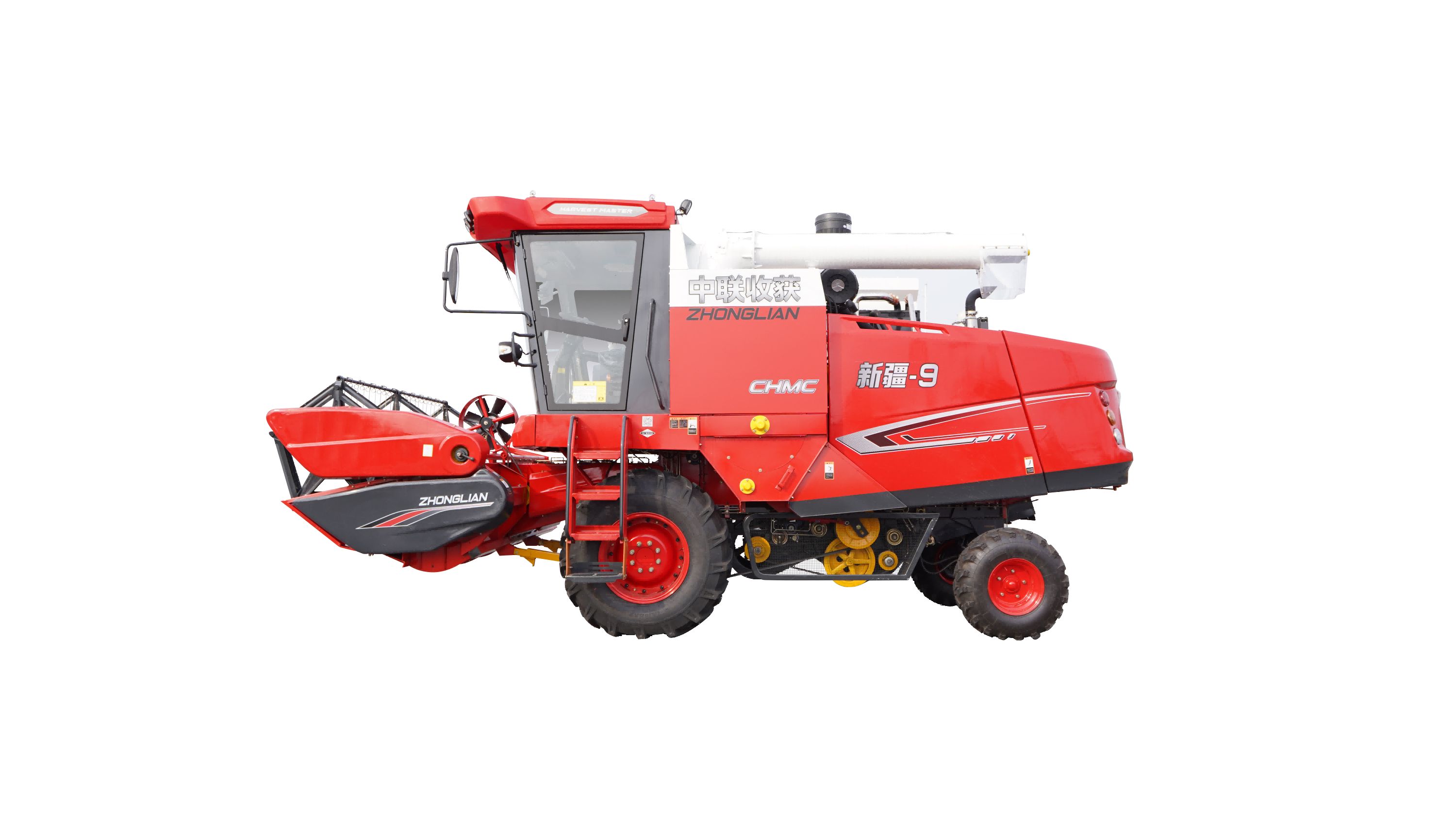

CHMC 2023 Self-propelled Grain combine harvester
Product description
“Zhonglian Harvest”type 4LZ-9B self-propelled full feed grain combine harvester adopts the “tangential flow and horizontal axial flow drum”threshing separation technology,which has strong threshing ability to separate the materials thoroughly;The whole harvester structure design is reasonable,easy to maintain;And with new peripheral design,beautiful lines, practical and beautiful;it mainly harvests wheat and can also harvest rice,soybeans,rapeseed,coarse cere-als, and corn kernels by replacing parts,which is suitable for cross-region al operations in most regions of the world.
Product parameter
| Serial number | project | unit | design value |
| 1 | Model Name | / | 4LZ-9B self-propelled wheel grain combine harvester |
| 2 | Structure type | / | Self-propelled wheel |
| 3 | Supporting engine manufacturer | / | Guangxi Yuchai Machinery Co., Ltd. |
| 4 | Matching engine brand model | / | YCA05200-T300 |
| 5 | Supporting engine structure type | / | Vertical, in-line |
| 6 | Number of engine cylinders | Cylinder | 4 |
| 7 | Matching engine calibrated power | kW | 147 |
| 8 | Matching engine calibration speed | r/min | 2200 |
| 9 | Overall dimensions of the whole machine ( length × width × height ) | mm | 6700 × 3260 × 3350 |
| 10 | Machine quality | kg | 5640 |
| 11 | header width | mm | 2840 |
| 12 | Minimum ground clearance | mm | 290 |
| 13 | Knife type | / | Type Ⅱ |
| 14 | Feeding amount | kg/s | 9 |
| 15 | Working gear | / | I gear, II gear |
| 16 | Operating speed | km/h | 3 ～9 |
| 17 | Operating hour productivity | hm 2 /h | 0.8 to 1.2 |
| 18 | Fuel consumption per unit operation | kg / hm 2 | ≤35 |
| 19 | Header auger type | / | Spiral finger |
| 20 | Track ground pressure | kPa | / |
| 21 | reel type | / | Eccentric spring tooth |
| 22 | Reel blade diameter | mm | 1032 |
| 23 | Number of reels blade | Piece | 5 |
