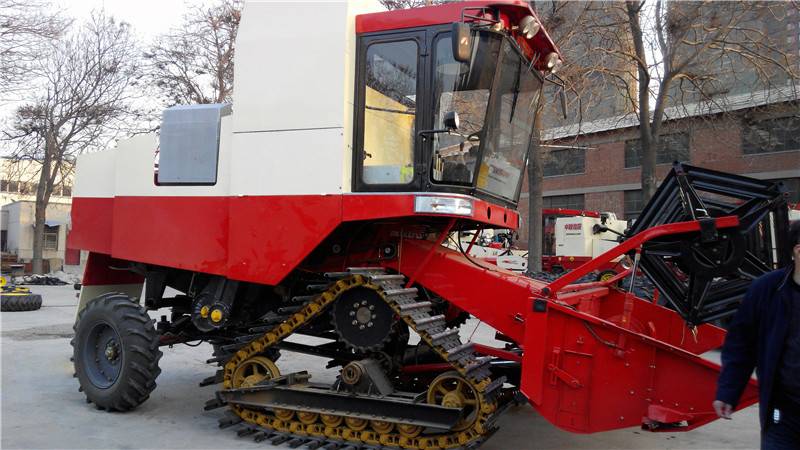

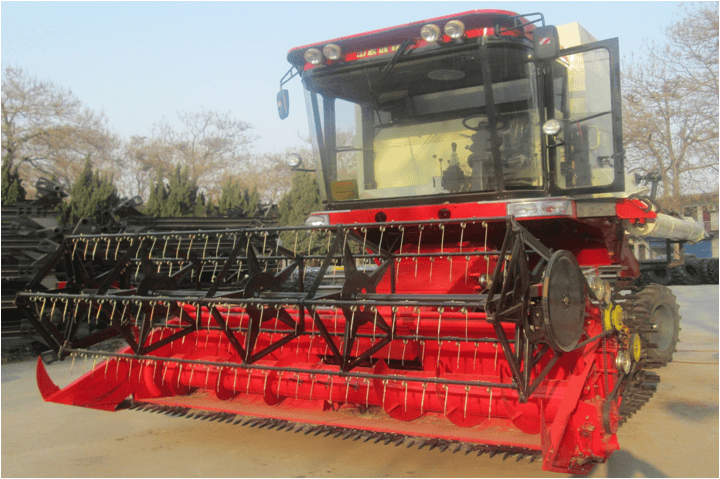

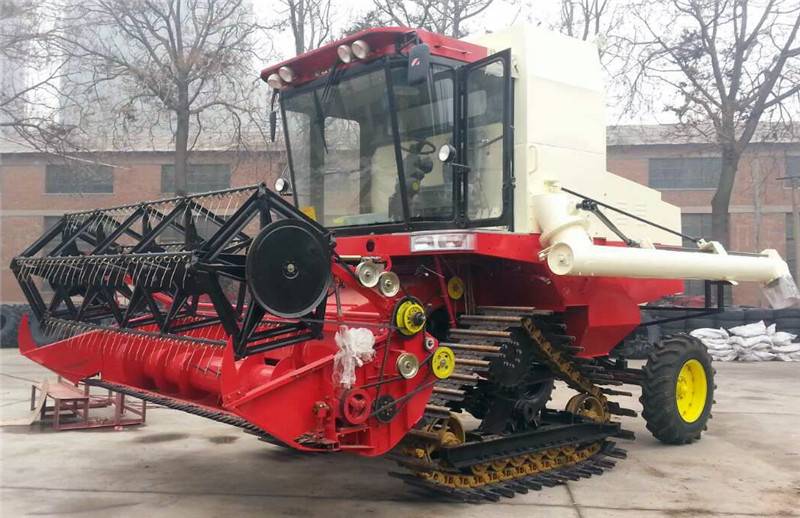

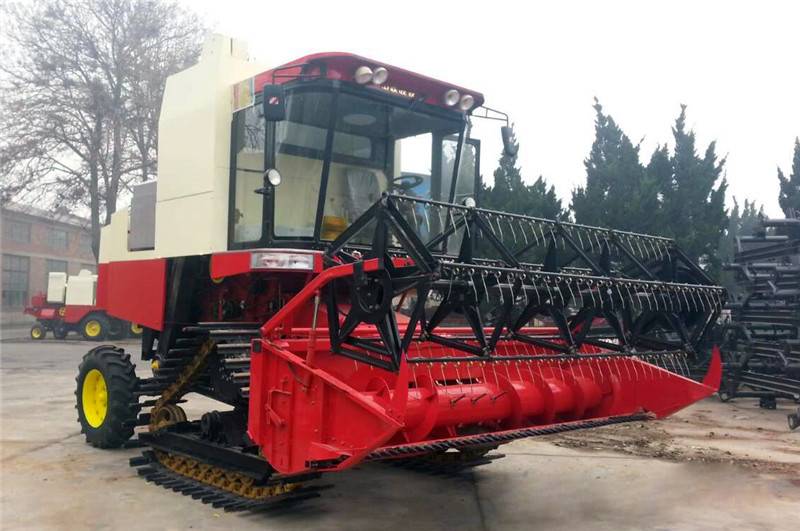

Crawl Type Grain Combine Harvester（Wheel+Chain）
Main Features
1. 680mm chain track width, low grounding pressure and strong driving power.
2. Heightened chassis,the hight from the drive wheel’s center to groud can up to 1100mm,suitable for muddy rice fields.
3.High strength frame with double-layered steel material.
4. The steering wheels adopt double-cylinder, to make the steering easy and flexible.
5. Widen elevator,smoothly feeding,faster speed and more efficiency.
6. Modular installation of multi-function cutters with 1720mm length.
7. Left and right double brake motor for easy track steering.
8. Adopt automatic high-level unloading grain tank, 4300mm unloading grain pipe which is suitable for different grain transportation vehicles, labor-saving and quickly unloading.
9. Sealed cab, this reduce the noise, make the driver feel more comfortable.
Technical parameters
Type | Engine Power (KW) | Engine Speed(r/min) | Cutting Width (mm) | Feeding Rate (kg/s) | Work efficiency (hm²/h) | Total Loss Rate (%) | Grain Tank Capacity（m³） | Dimension L*W*H (mm) |
4LZ-8 | 125 | 2200 | 3600/3900 | 8 | 0.8～1.2 | Wheat≤1.2 Rice≤3.0 | 3.2 | 7200*3900*4300 |
