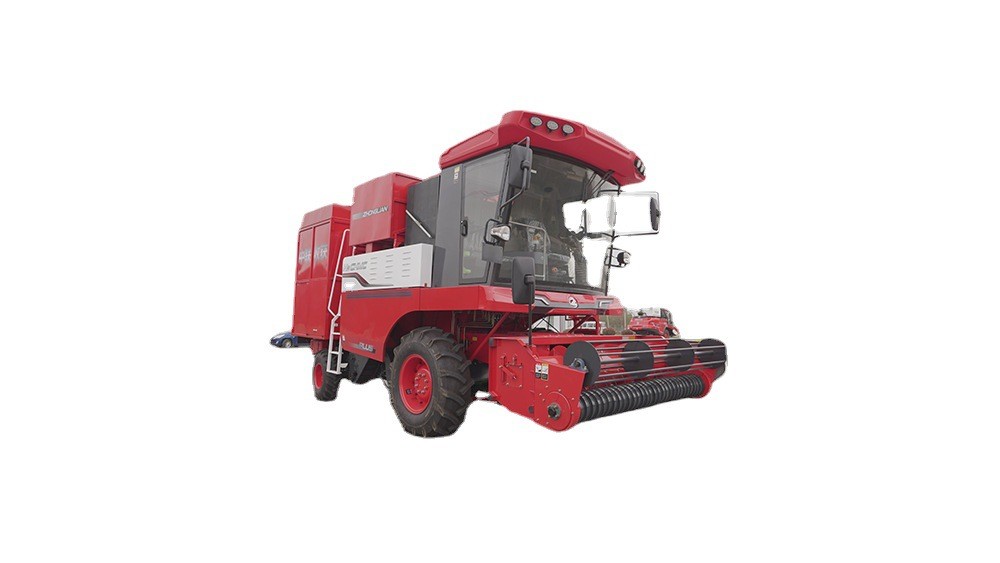

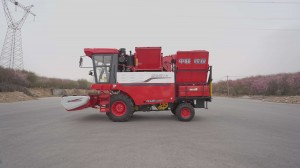

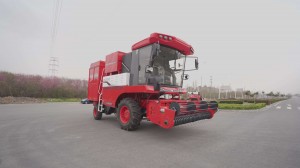

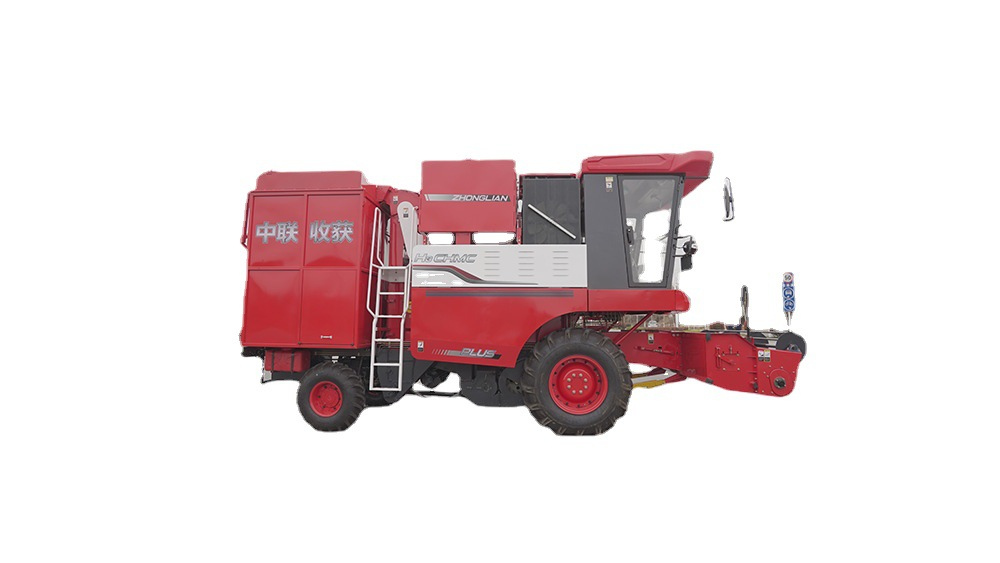

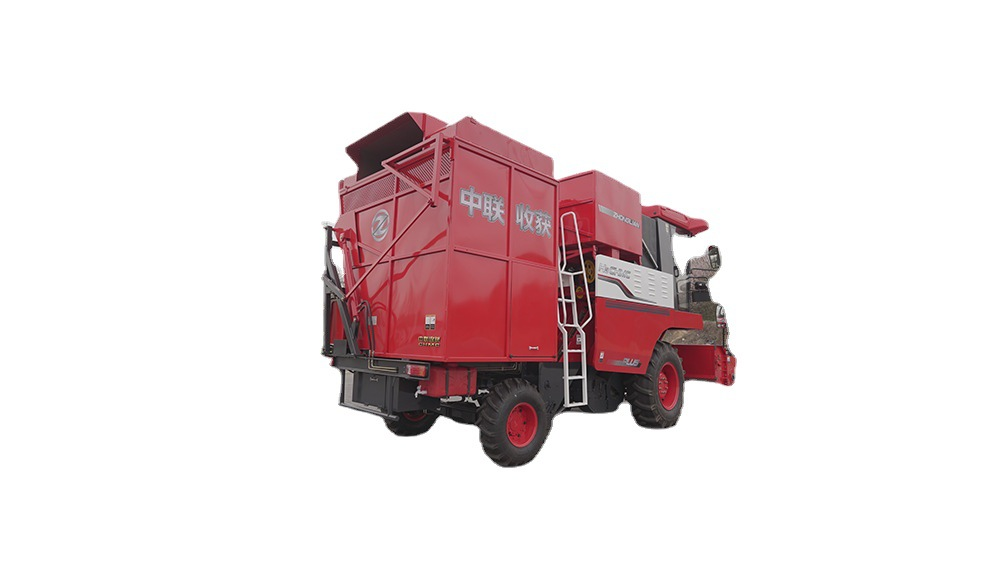

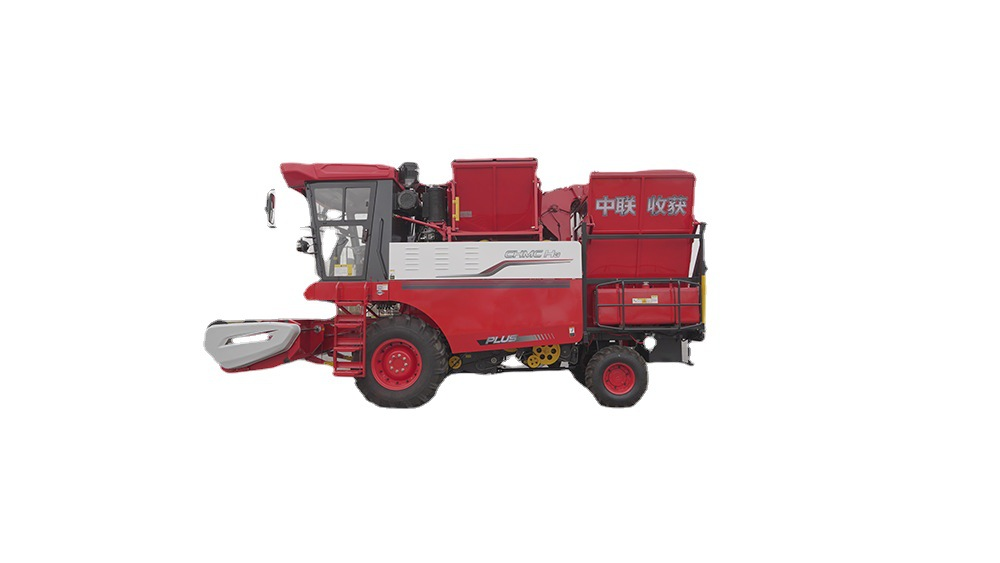

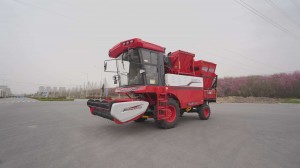

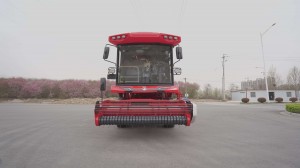

Product Photos

1. The newly upgraded cab, the front shield adopts double-layer glued arc glass，good sealing performance, dust-proof and noise-reduction effect，optional original air conditioner to improve driving comfort ;
2. The driving cab added the auxiliary seat, and increases the driving space, which is convenient for cross-regional operations ;
3. Folding front ladder, better pass-ability, more practical and convenient ;
4. The chassis adopts 16mn high-strength steel, optimized welding process, reinforced chassis, stronger bearing capacity, higher stability, and greatly improved safety ;
5. Using D3.5 gearbox, the diameter of the clutch disc is increased to 275mm, the bearing capacity is increased by 20%, the transmission is reliable, and it is suitable for various harsh road conditions ;
6. Standard equipped hub reductor, optimized speed ratio, improved operation and transition speed, and improved your harvesting efficiency ;
7. The steering system adopts dual-cylinder steering， which increases the cylinder stroke, reduces the turning radius, saves turning time, and greatly improves work efficiency ;
8. Reinforced header, lengthened inclined conveyer, which is not blocked, better driving vision, more convenient for maintenance ;
9. The engine is arranged horizontally, the transmission is more reliable, the engine power is increased to 160 horsepower, and a multi-state switch is added to achieve multi-speed horsepower output to meet the user’s various working conditions ;
10. Optimize the hydraulic main clutch structure, improve the strength of the hydraulic main clutch tension arm, prevent deformation, greatly improve the product life and reduce your maintenance costs
    Technical Parameters





    Technical Parameter
    4HJL-3 combine harvester
    Model		Type No.		4HJL-3
    		Structural style		full feed self-propelled wheel type
    		Function		picking, crash and collect the straw
    		Size ( L, W, H )		6800*2790*3420 mm
    		Gear box type		mechanical
    Engine		model		Yuchai
    		power		118 kw
    		Engine speed		2400r/min
    		Oil consumption		≤30 kg/hectare
    Performance		Cutting width		2500 mm
    		Work efficiency		0.4 – 0.7 hectare/hour
    		Seed damage rate		≤2 %
    		Impurity rate		≤5 %
    		Unloading way		mechanical unloading
    		Fruit tank capacity		3kg/s
    Wheel		Type of drive		4x2wd
    Transportation and Package		/		1 set in a 40′HC (dis-assembled )
    					Product Features                                                                                                                                                        * Sealed driver cabin, comfortable for driver, good horizon. * Special cutter table, auger-type picking roller, forcelly and quickly to pull the corn stick into cutter table, not intertwine, not blocking. * Adopt straw crushing and returning machine, can crush the corn straw completely and reduce the stubble height. * Special design in peeing device, adopt soft peeling way, 4 sets peeling device, 16 pieces rollers, half metal rollers and half rubber rollers, this design makes peeling more clean, reduces seed damage rate and seed lose rate. * Flexible harvesting ways, suitable for different row space and different planting structure,can harvest not in rows. * Assembling shake sieve and seed recycling bins, can collect the fallen corn seed, reduce loss rate. * Short machine body, short front-back wheel distance, small turning radius, easy to turn around in field. * Adopt hydraumatic side dumping device, convenient for operating corn unloading.

    Packaging & Shipping

           2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.



    After-Sales Service

    1. Training how to install and use the machine,engineers available to service machinery overseas.

             2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

             3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.
    Users Presentation


11.

1. We need to apart some parts from the whole machine.
