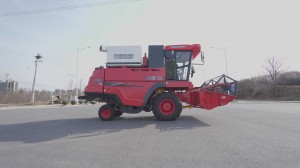

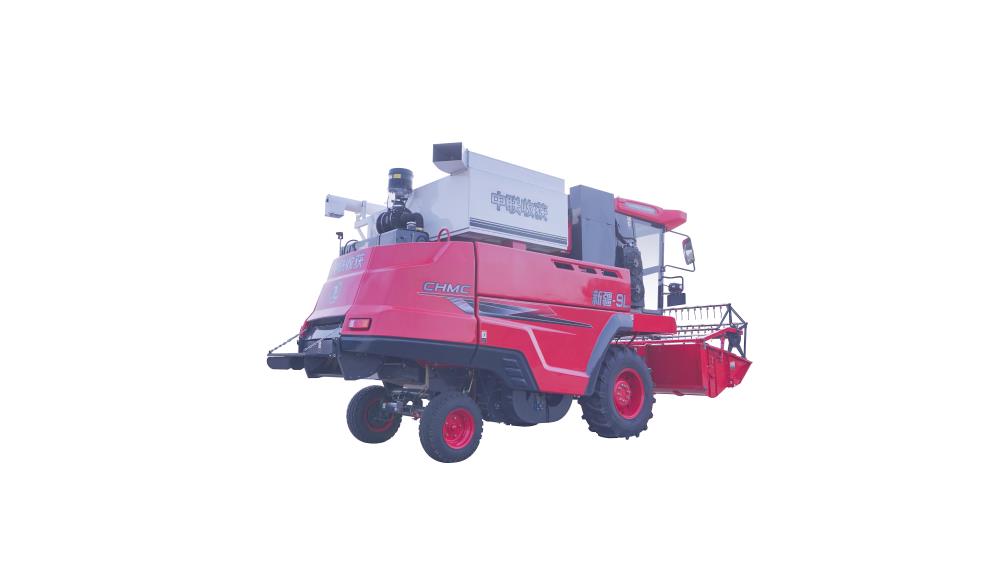

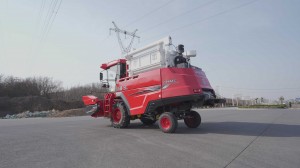

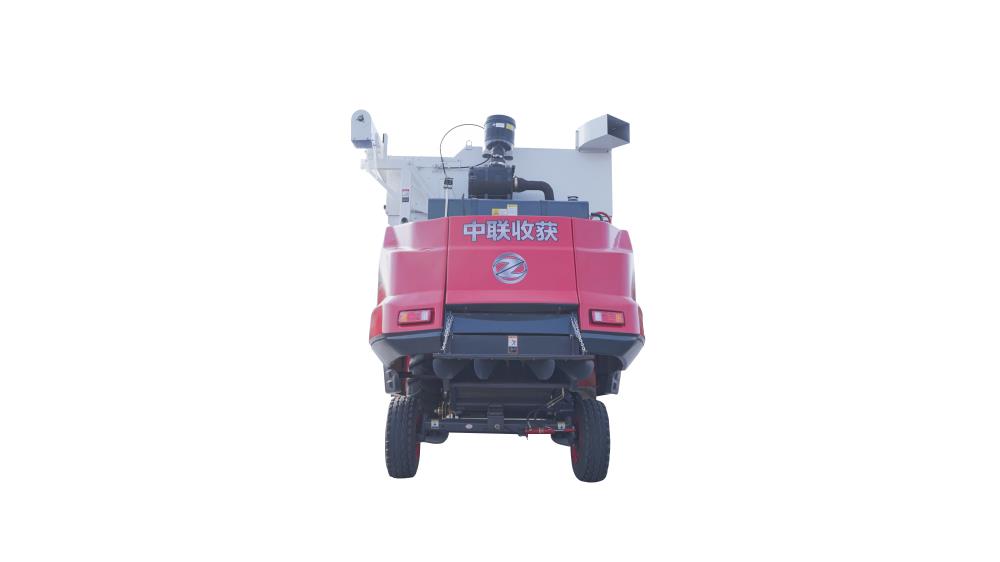

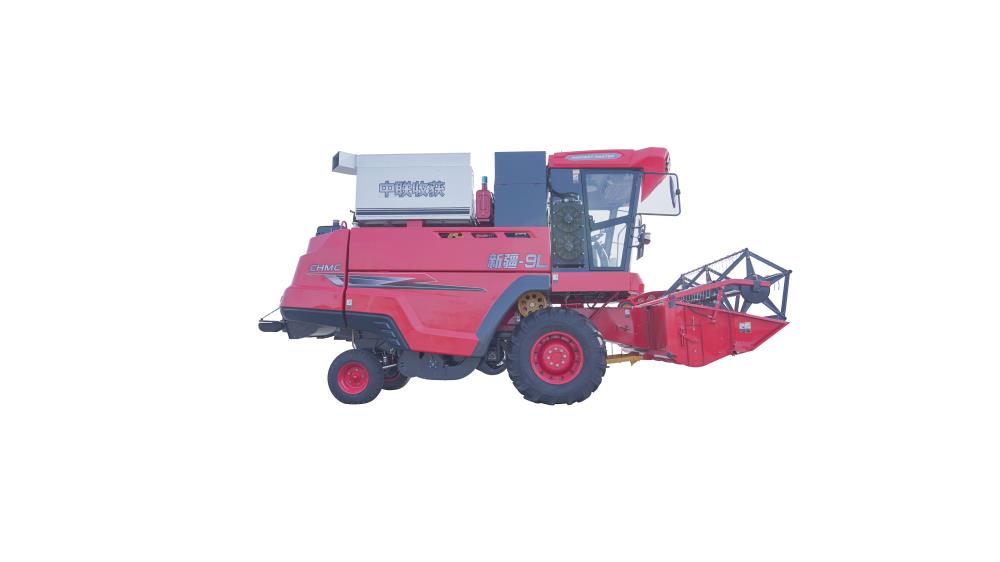

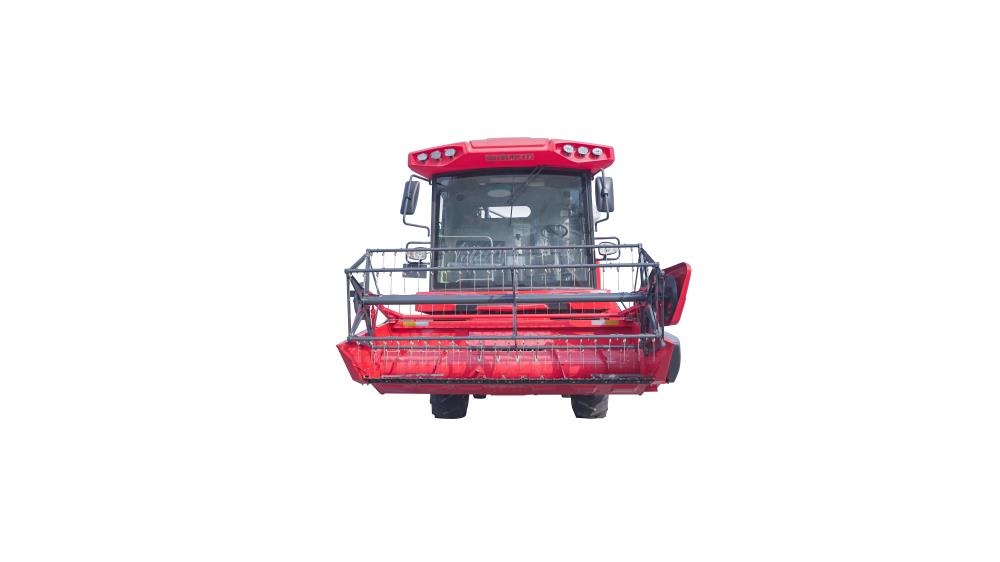

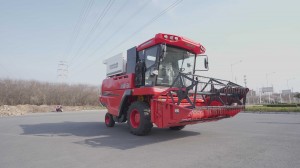

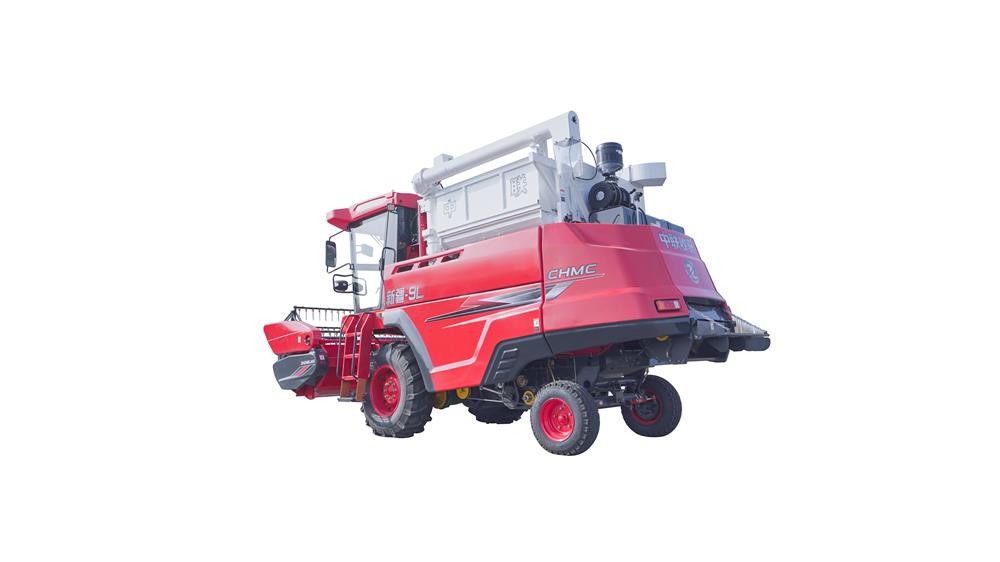

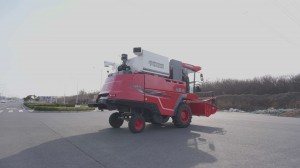

Products Photos

1. 190 horsepower famous engine brand with strong power to improve your harvesting efficiency ;
2. Brand-New cab , original air-conditioning , like spring all the year around, and the driving is comfortable ;
3. Equipped with a standard cutting header of 2.75m, suitable for harvesting needs of different farms, with efficient and flexible harvesting working ;
4. Adopted with the tangential flow and longitudinal axial flow threshing system, enlarged and lengthened longitudinal axial flow drum, the drum can be adjusted in three different gears, with high harvesting efficiency and fast harvesting speed ;
5. Improved cleaning and selecting room, which can separate cleanly and sieve with little loss and no grain leakage, so every single grain can be brought in the barn ;
6. The grain box can be dually used: The high-level grain unloading cylinder can move 360°unload grains with the maximum unloading height of 4.5m ; The whole grain tank can unload the grains by dumping, which is convenient and highly efficient ;
7. Air-driven grain conveyor , with high harvesting efficiency, less broken grains, which reduces the harvesting loss ;
8. 2.2 m3 large-capacity grain tank, which can harvest 0.3 hectare land in one hour, reduce the times of grains unloading and improve your working efficiency ;
9. The new type of plate-fin water tank,with faster heat dissipation, no fear of high temperature ;
10. Frequency conversion electric brush, forced dust removal, which can cleanly remove dust with good effect ;
11. The chassis girder is made of 12# reinforced steel, which sharply increases the harvester body strength,and greatly improved safety ;
12. The whole system is of standard D 3.5 gearbox, enlarged clutch friction plate, standard sealing edge inspection, with high transmission efficiency and stronger reliability
    Technical Parameters




    serial number	project	unit	design value
    1	Model Name	/	4LZ-9L Self-propelled Wheeled Grain Combine Harvester
    2	Structure type	/	self-propelled wheeled
    3	Supporting engine manufacturers	/	Yu Chai
    4	Matching engine structure type	/	vertical, in-line
    5	Number of matching engine cylinders	cylinder	4
    6	Matching engine rated power	kW	139.7kw
    7	Matching engine calibration speed	r/min	2200
    8	Overall dimensions of the whole machine (length × width × height)	mm	7300×3050×3420
    9	Machine quality	kg	6010
    11	Header working width	mm	2840
    12	Minimum ground clearance	mm	260
    13	Knife type	/	Type II
    14	feeding amount	kg/s	9
    15	Working gear	/	I gear, II gear
    16	Working speed	km/h	3 to 9
    17	Working hour productivity	hm2/h	0.8～1.5
    18	Fuel consumption per unit operation	kg/hm2	≤35
    19	Header auger type	/	Spiral finger
    20	Track ground pressure	kPa	/
    21	reel type	/	Eccentric spring tooth
    22	Reel diameter	mm	1032
    23	Number of reels	Piece	5
    24	Layout of threshing mechanism	/	Tangential flow + longitudinal axial flow
    25	Number of threshing drums	Piece	2
    26	Type of main threshing drum	/	Axial flow
    27	Auxiliary threshing drum type	/	Cut flow
    28	Dimensions of main threshing drum (outer diameter x length)	mm	823×2000
    29	Dimensions of auxiliary threshing drum (outer diameter × length)	mm	420×900
    30	Concave screen type	/	raster format
    31	Rehabilitation	/	Volute + Rubbing Disc
    32	fan type	/	centrifugal	centrifugal
    33	Fan diameter	mm	450	400
    34	Number of fans	Piece	2
    35	Track pitch × number of sections × width	/	/
    36	Track gauge	mm	/
    37	drive mode	/	two-wheel drive
    38	Brake type (front and rear)	/	Front: Clamp Disc, Rear: Drum
    39	Transmission type	/	Mechanical + hydraulic stepless speed change
    40	Drive type (front, rear)	/	Front: Mechanical Drive , Rear: /

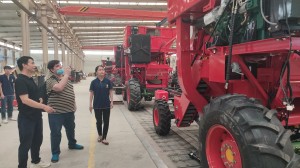

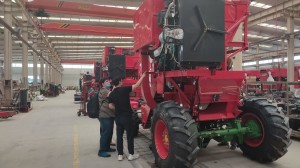

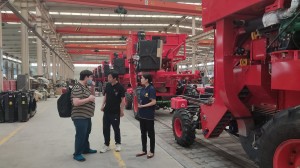

Factory Photos

Packaging & Shipping

1. We need to apart some parts from the whole machine.

2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.

After-Sales Service

1. Training how to install and use the machine,engineers available to service machinery overseas.

2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.

FAQ:

Q1. How long is the delivery date?

A :In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.

Q2. How can I visit your factory?

A:We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient

Q3: What’s your main products?

A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.

Q4. What is your terms of payment?

A: T/T, L/C, Paypal,Western Union

Q5: How is the quality of the harvesrter?

A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.
