Product Description

1. Choose 190 horsepower country three excellent engines, with strong power and sufficient reserves.
2. Improve and strengthen the power output components, with reliable and good transmission quality.
3. Expend the bridge (900mm), making it smooth and not blocked, faster operation speed and more efficiency.
4. Adjustable cut can be suitable for corn harvesting with different distances.
5. Adopt a reinforced gearbox, increase the large clutch, lengthen the rotating arm, easy operation, strong carrying capacity.
6. Widening the double-layer step screen, with stronger selection ability and better selection effect.
7. Adopt automatic hydraulic high grain unloading cylinder, suitable for all kinds of grain transport vehicles, grain unloading is fast and labor-saving.
8. Install the reversing radar at the rear for convenient and safe driving.
9. The new overall sealed cab is with a wide field of vision, there is a clean cockpit, comfortable, small noise, and reserved air conditioning interface.
10. Adopt large water tank and new radiator shield to ensure that the engine works for a long time in harsh environment.
    Technical Parameter





    Serial number	Items	Unit	Design value

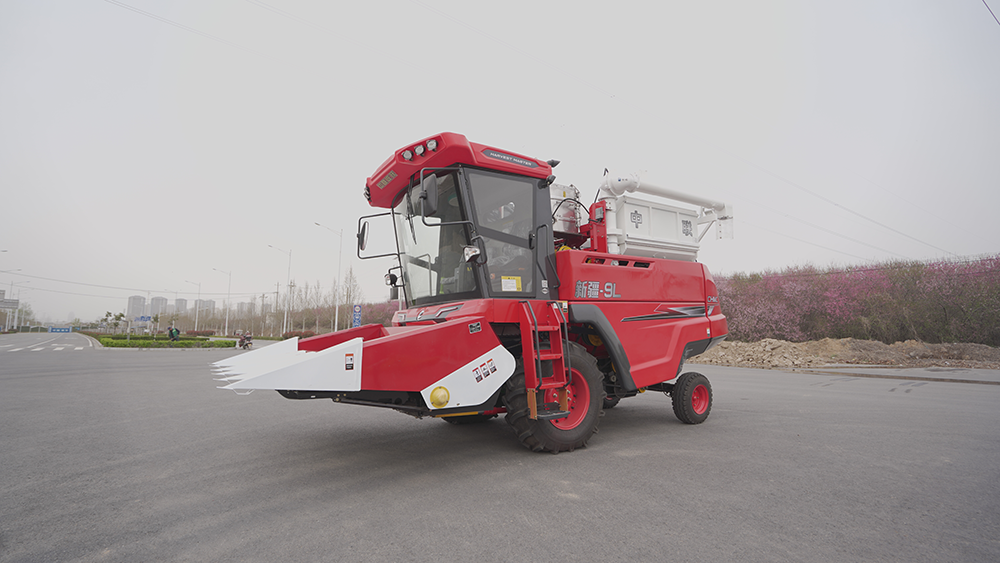

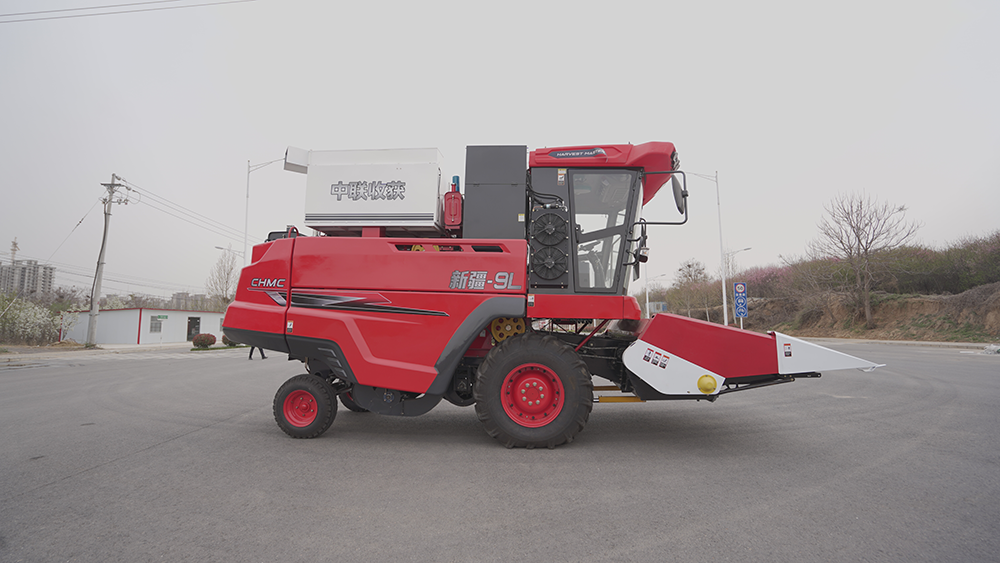

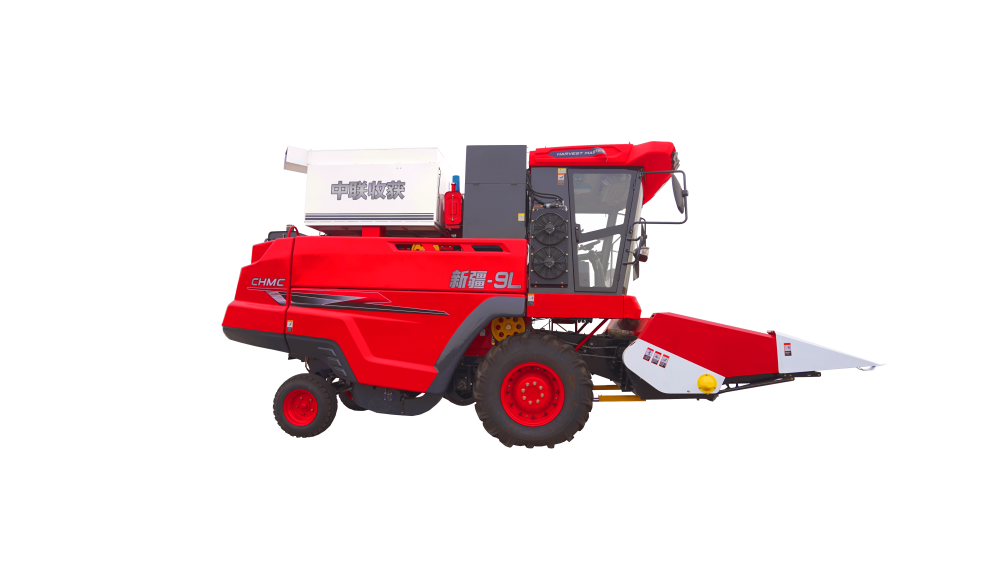

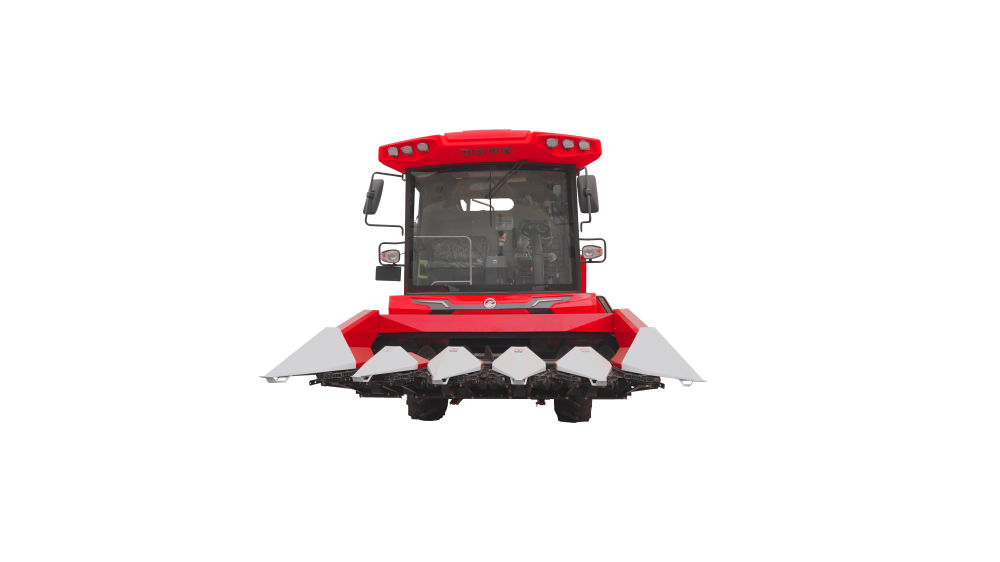

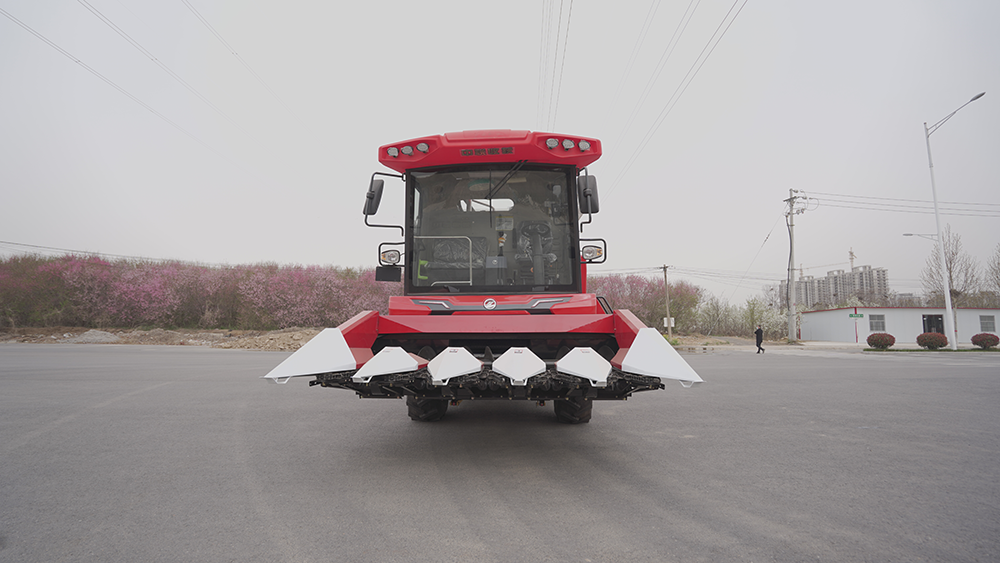

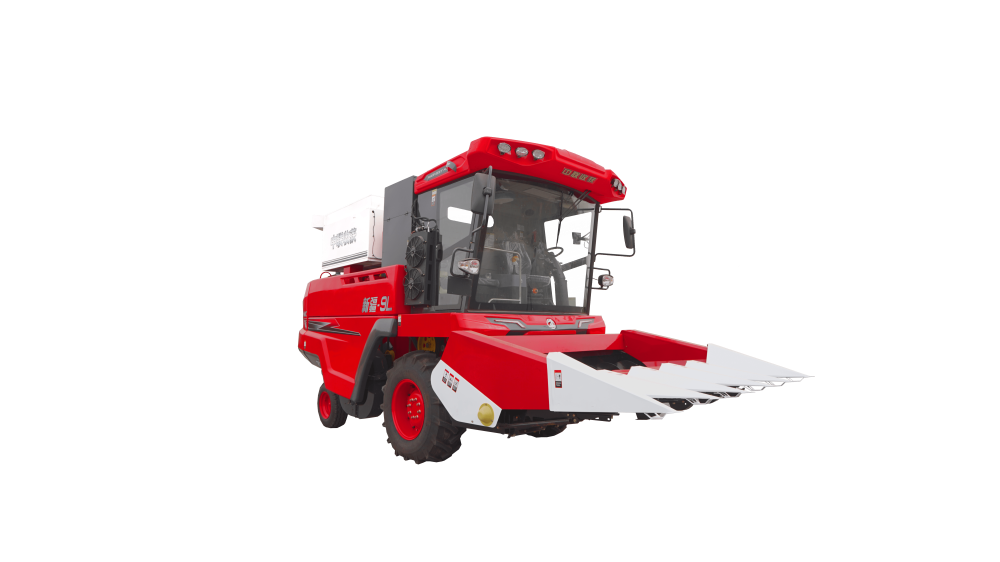

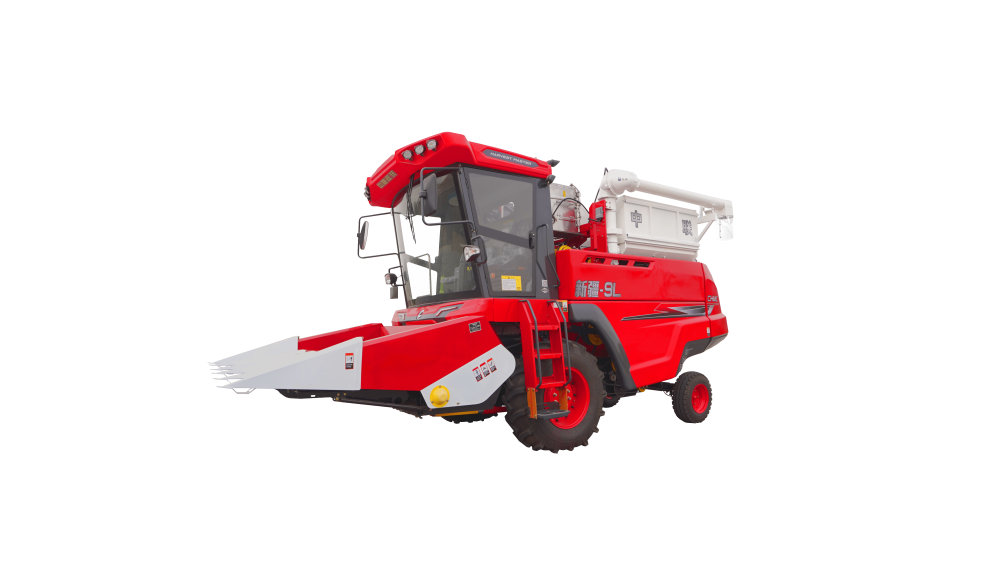

    1	Model Name	/	4YZL-5 Self-propelled Corn Grain Combine Harvester
    2	Structural style	/	Wheel type and direct harvest of grains
    3	Supporting engine manufacturer	/	Guangxi Yuchai Machinery Group Co., Ltd.
    4	Matching engine structural type	/	Vertical, in-line
    5	Rated power of matching engine	kW	140
    6	Matched Rated Engine Speed	r/min	2200
    7	Outline dimensions of the whole machine (long) × wide × High)	mm	7640×3080×3550	7640×3280×3550
    8	Complete machine quality	kg	7190
    9	Number of working lines (number of channels)	Line	5
    10	row spacing	mm	550	600
    11	Working breadth	mm	2930	3130
    12	Minimum ground clearance	mm	300
    13	Working speed	km/h	3～9
    14	Hourly productivity	hm2/h	0.8～1.4
    15	Fuel consumption per unit area	kg/hm2	≤35
    16	Arrangement position of ear elevator	/	/
    17	Structure type of ear elevator	/	/
    18	Type of ear plucking mechanism	/	Picking plate type
    19	Number of stripping rollers / plates	number	10 (ear plate)
    20	Type of stripping mechanism	/	/
    21	Number of stripping rollers	number	/




Packaging & Shipping

1. We need to apart some parts from the whole machine.

2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.

After-Sales Service

1. Training how to install and use the machine,engineers available to service machinery overseas.

2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.

FAQ:

Q1. How long is the delivery date?

A :In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.

Q2. How can I visit your factory?

A:We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient

Q3: What’s your main products?

A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.

Q4. What is your terms of payment?

A: T/T, L/C, Paypal,Western Union

Q5: How is the quality of the harvesrter?

A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.
