Product Description

1. The header can be optionally equipped with a quick-hook header, which is more convenient to hook up the header and can be completed independently ;
2. Added the anti-tangle device on the right side of the eccentric rell,it greatly reduces product maintenance time in job engineering and improves the working efficiency ;
3. Axial-flow drum discs are re-opened, and the separation plate and nail teeth are heat-treated, so the quality is more reliable; the axial-flow drum shaft tube is thickened to Φ68, the material is cold-drawn steel pipe, hot-loading process, the diameter of the shaft head is thickened to Φ50, and the material is thickened to Φ50. Changed to 42CrMo, greatly improving the work intensity ;
4. The engine power is increased to 200 horsepower, and a multi-function switch is added. The horsepower can be changed between 125 and 200 horsepower to meet more needs of users; the power output pulley is changed from Φ248 to Φ272, the walking speed is increased by 10%, and the work efficiency is higher ;
5. The power output connecting belt, walking belt and threshing drum belt all adopt red label belt, which prolongs the service life, reduces the replacement cycle and improves the operation efficiency ;
6. The quality of gear pump tubing elbows has been greatly improved, reducing maintenance time ;
7. Improve the strength of the hydraulic main clutch tensioning arm , increase the fork and adjusting screw from 12mm to 16mm , improve the strength, prevent deformation , and greatly improve the product life ;
8. The hydraulic main clutch is added with a shorting plug, and the instruction mark is added, which is convenient for users to operate ;
9. The chassis adopts 16 mn high-strength steel , and the reinforcing plate is lengthened,It changes the welding process, improves the strength of the frame, greatly improves the service life of the whole machine, and has a higher retention rate ;
10. The intermediate shaft adopts 42 CrMo solid shaft thickened, the bearing is upgraded from 209 model to 210 model, the strength is increased by 25 % , the quality reliability of the whole harvester is improved .
    Product Parameter





    Serial number	project	unit	design value

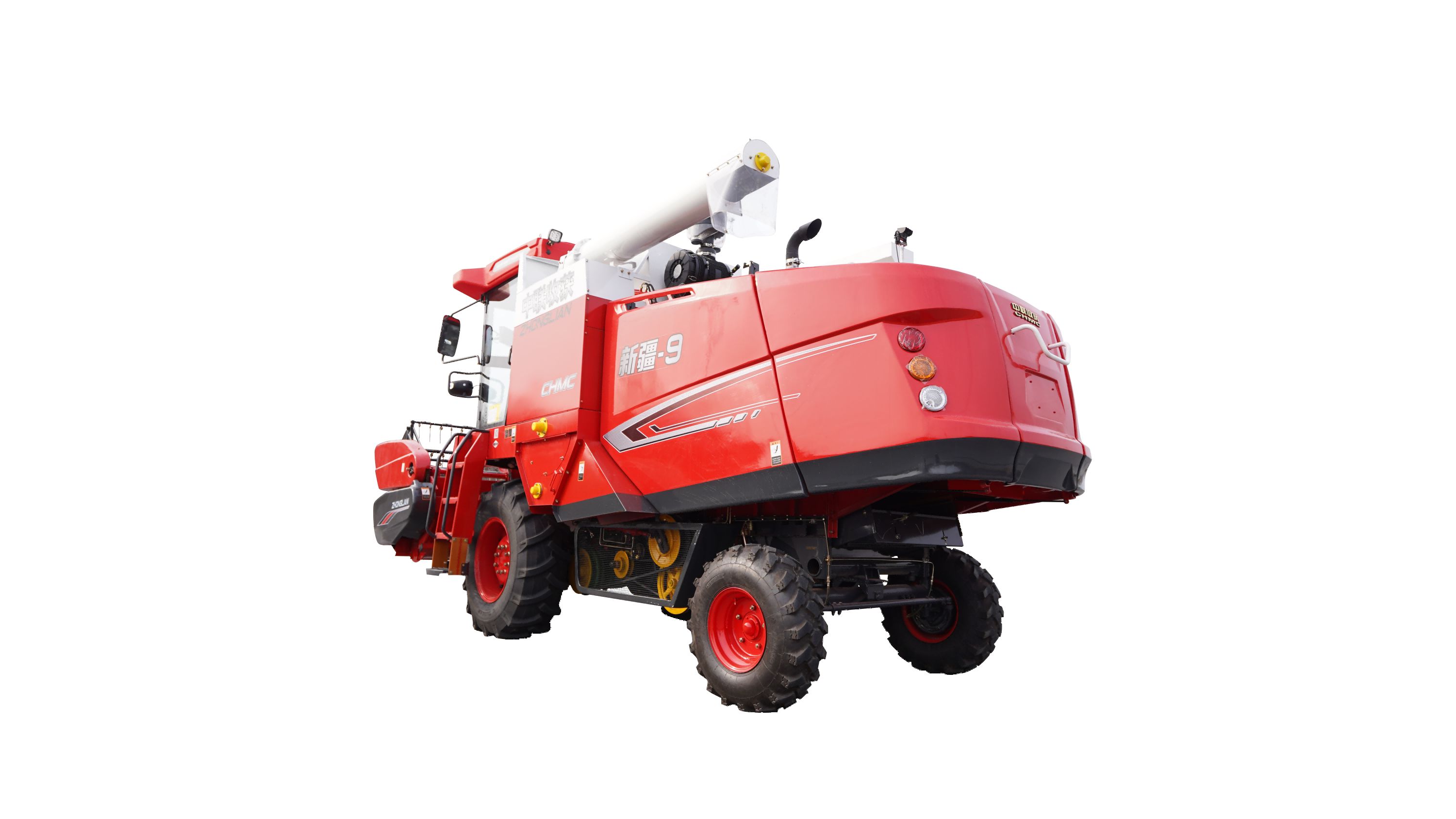

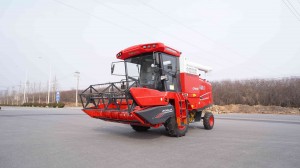

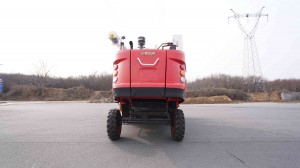

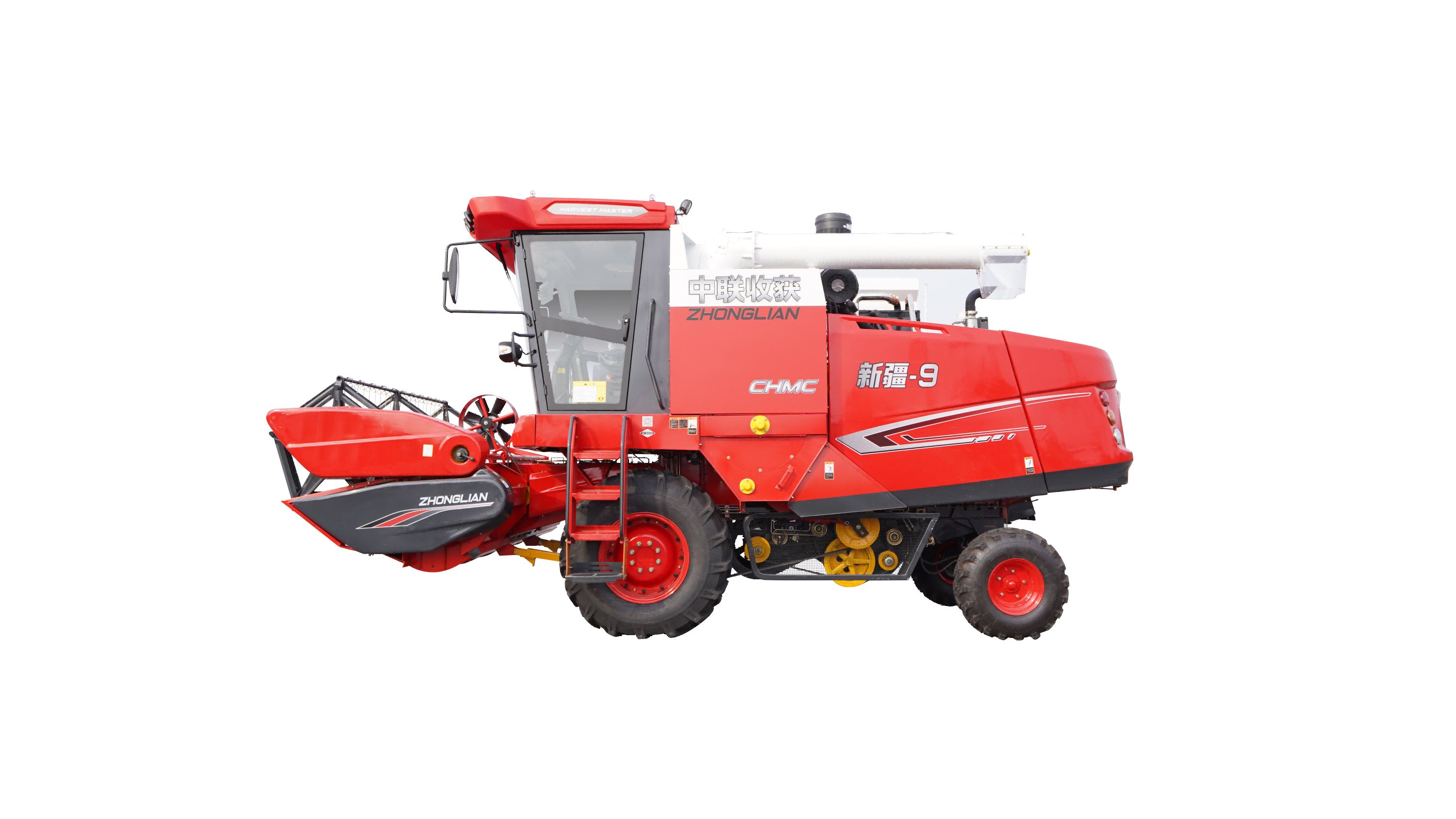

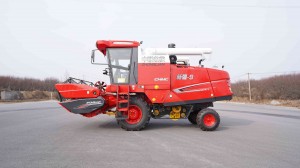

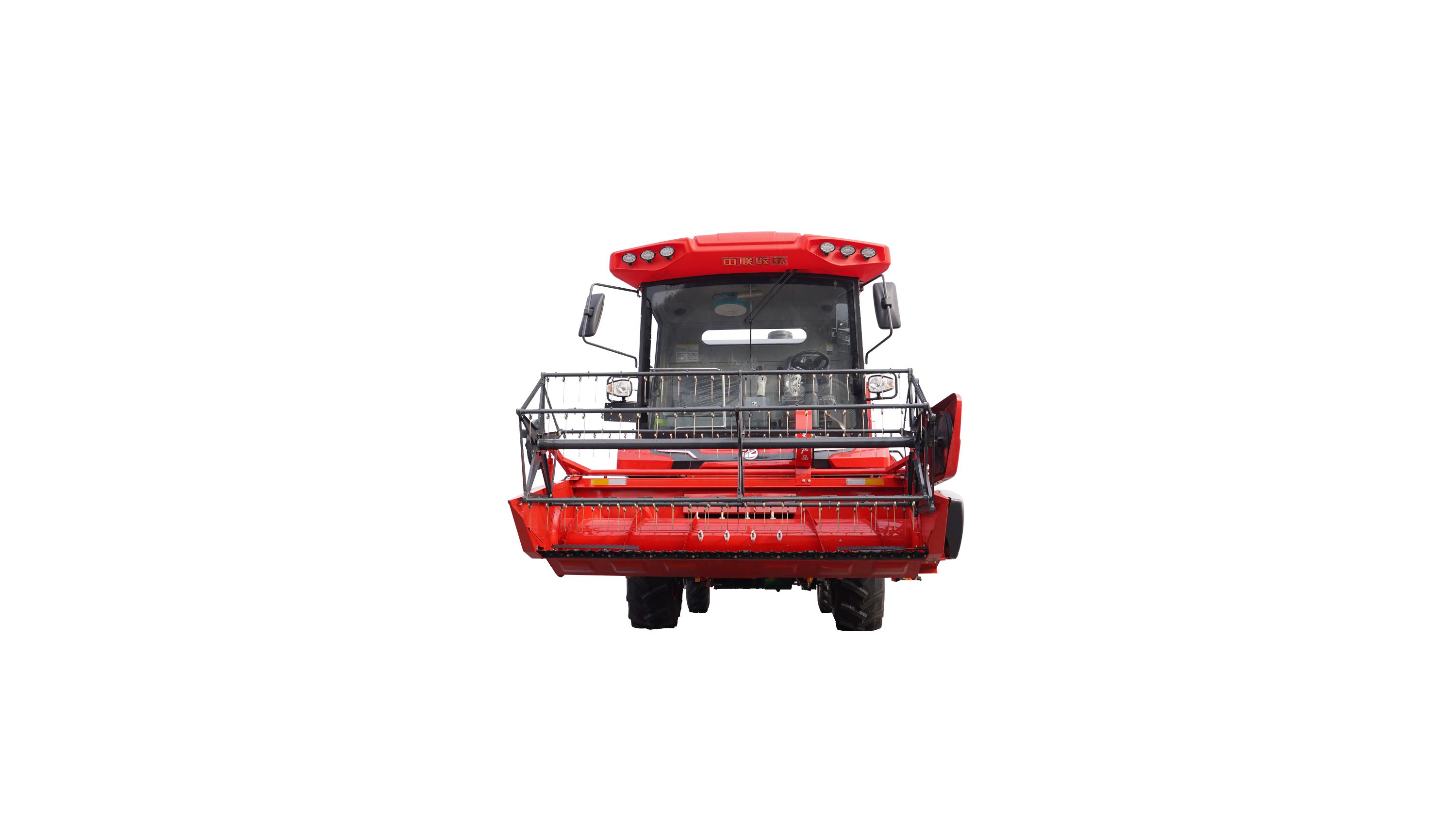

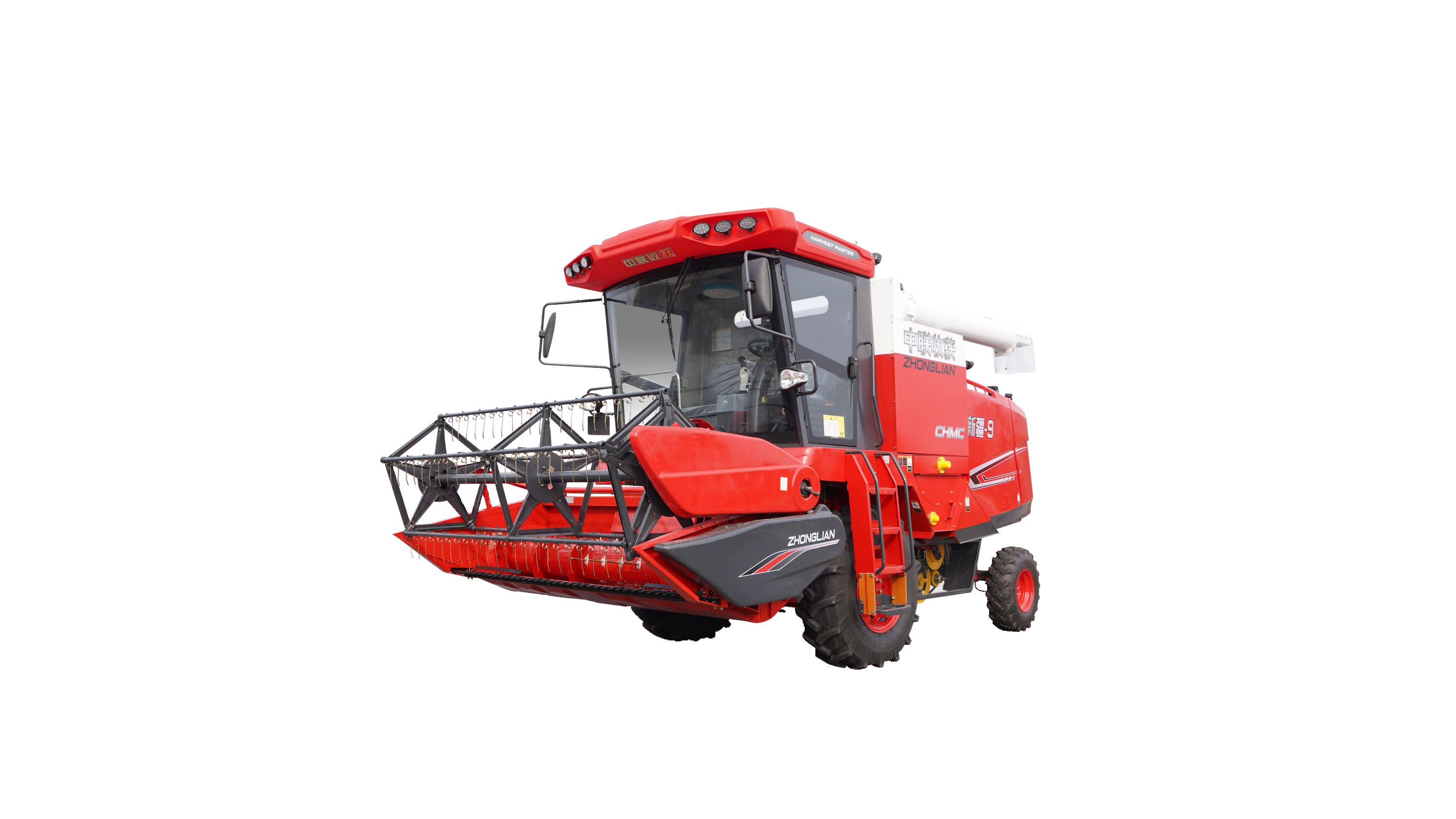

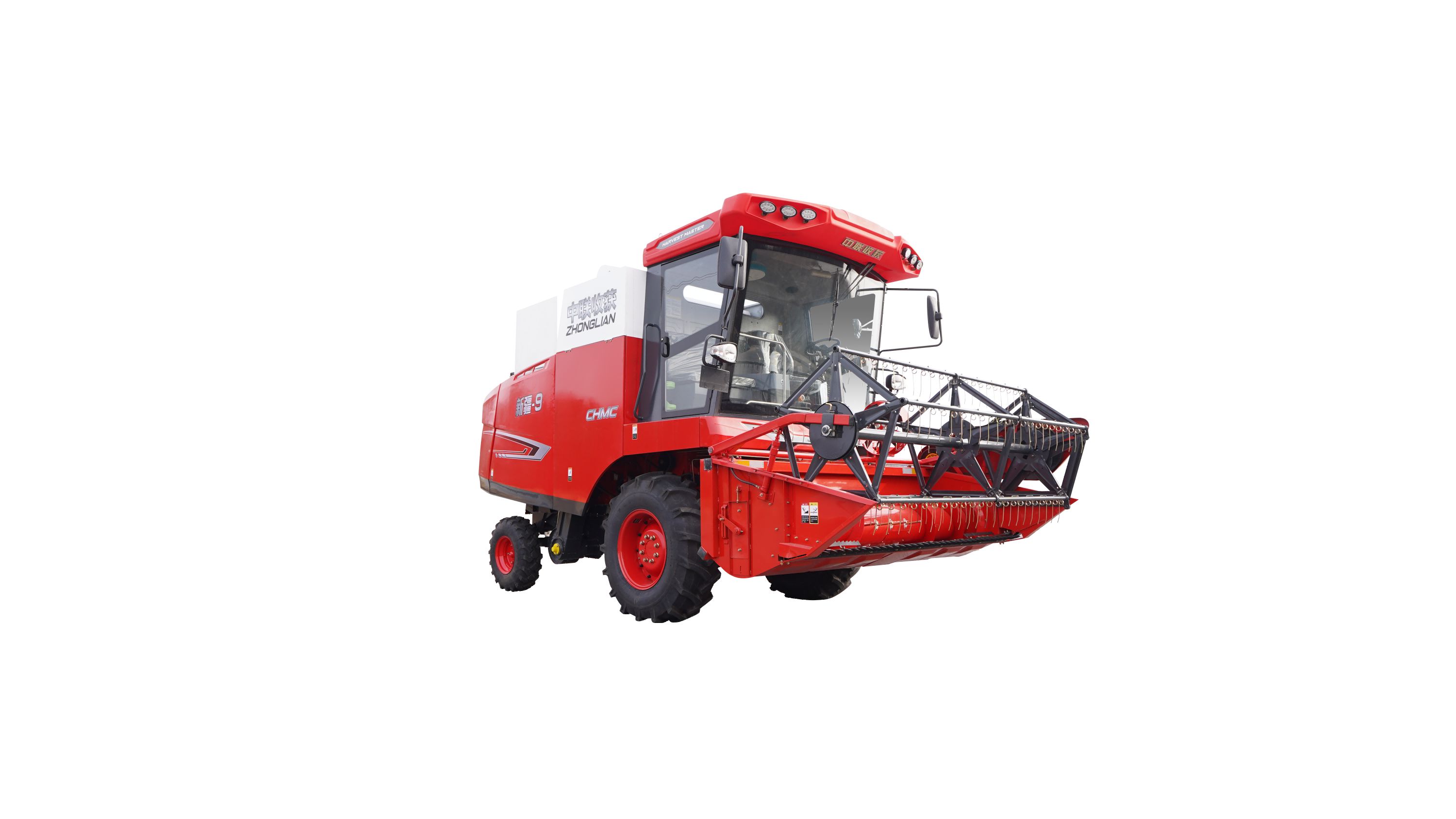

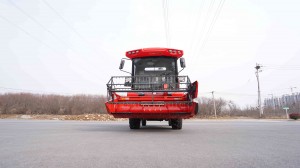

    1	Model Name	/	4LZ-9B self-propelled wheel grain combine harvester
    2	Structure type	/	Self-propelled wheel
    3	Supporting engine manufacturer	/	Guangxi Yuchai Machinery Co., Ltd.
    4	Matching engine brand model	/	YCA05200-T300
    5	Supporting engine structure type	/	Vertical, in-line
    6	Number of engine cylinders	Cylinder	4
    7	Matching engine calibrated power	kW	147
    8	Matching engine calibration speed	r/min	2200
    9	Overall dimensions of the whole machine ( length × width × height )	mm	6700 × 3260 × 3350
    10	Machine quality	kg	5640
    11	header width	mm	2840
    12	Minimum ground clearance	mm	290
    13	Knife type	/	Type Ⅱ
    14	Feeding amount	kg/s	9
    15	Working gear	/	I gear, II gear
    16	Operating speed	km/h	3 ～9
    17	Operating hour productivity	hm 2 /h	0.8 to 1.2
    18	Fuel consumption per unit operation	kg / hm 2	≤35
    19	Header auger type	/	Spiral finger
    20	Track ground pressure	kPa	/
    21	reel type	/	Eccentric spring tooth
    22	Reel blade diameter	mm	1032
    23	Number of reels blade	Piece	5
    24	Arrangement of threshing mechanism	/	Tangential flow + horizontal axial flow
    25	Number of threshing drums	Piece	2
    26	Main threshing drum type	/	Axial flow
    27	Vice threshing drum type	/	Cut flow
    28	Dimensions of main threshing drum ( outer diameter x length )	mm	550 × 1700
    29	Dimensions of auxiliary threshing drum ( outer diameter×length )	mm	500 × 900
    30	Concave screen type	/	Grid
    31	Rehabilitation	/	Volute + rubbing plate
    32	fan type	/	centrifugal
    33	Fan diameter	mm	450

    Packaging & Shipping

    2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.



    After-Sales Service

    1. Training how to install and use the machine,engineers available to service machinery overseas.

    2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

    3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.

    FAQ:

    Q1. How long is the delivery date?

    A :In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.



    Q2. How can I visit your factory?

    A:We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient



    Q3: What’s your main products?

    A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.



    Q4. What is your terms of payment?

    A: T/T, L/C, Paypal,Western Union



    Q5: How is the quality of the harvesrter?

    A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.



1. We need to apart some parts from the whole machine.
