Product Description

1. Equipped with 175 horsepower famous engine brand , stable output, strong performance and take the lead in the field ;
2. New appearance design of the whole harvester is beautiful and elegant, and it is more trendy of the era ;
3. Large and wide driving cab , double-layer glued arc glasses, good dust-proof and noise-reduction effect ;
4. The driving cab added the auxiliary seat, and increases the driving space, which is convenient for cross-regional operations ;
5. The fruit picking room adopts Tangential flow drum and longitudinal axial flow drum fruit picking system , which has fast fruit picking speed and low fruit breaking rate ;
6. Extended cleaning and sieving box,which effectively reduce the impurity rate and loss rate of fruits ;
7. The cleaning and sieving box adopts Movable sieves , which is convenient for replacement and maintenance ;
   Product Parameter





   Technical Parameter

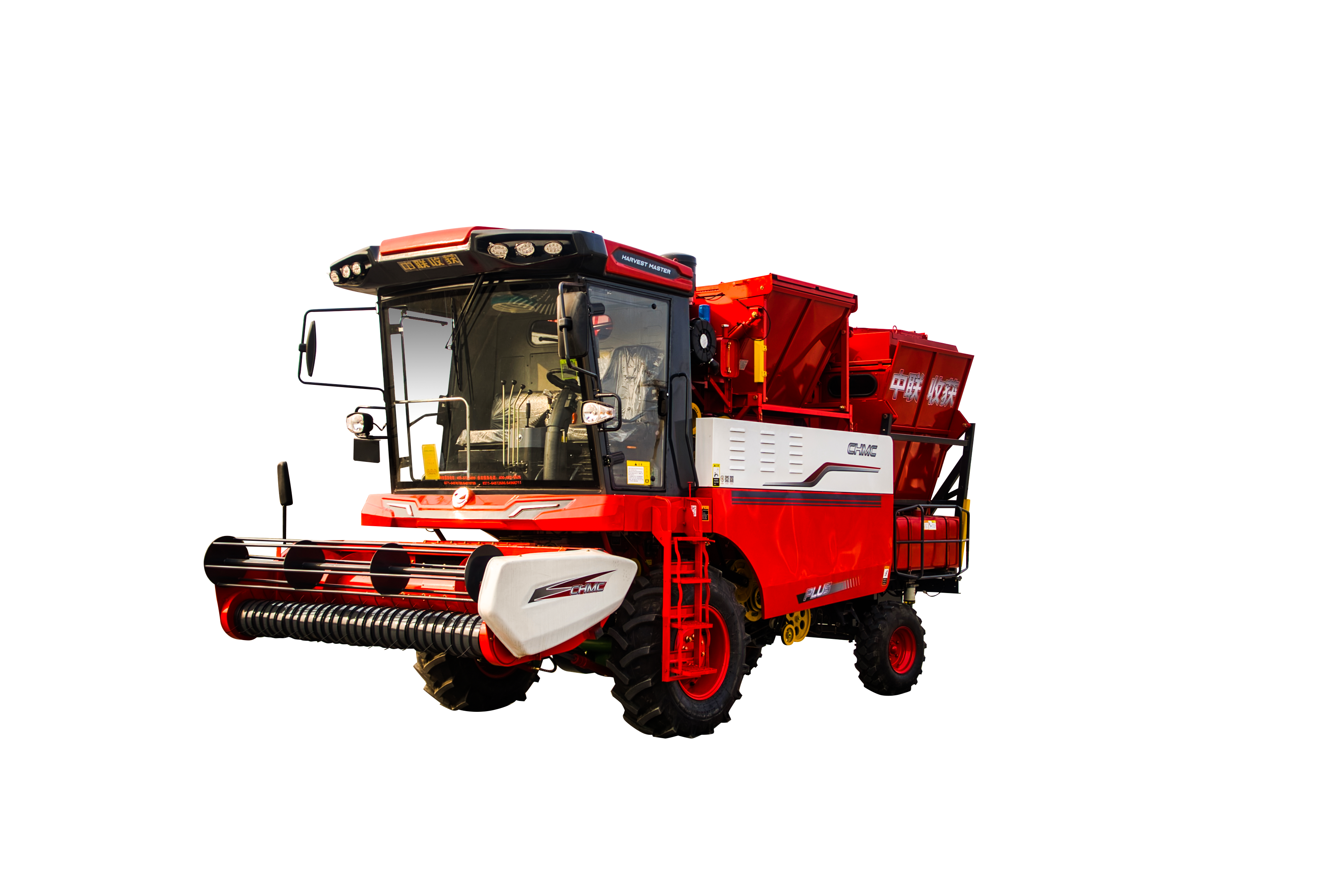

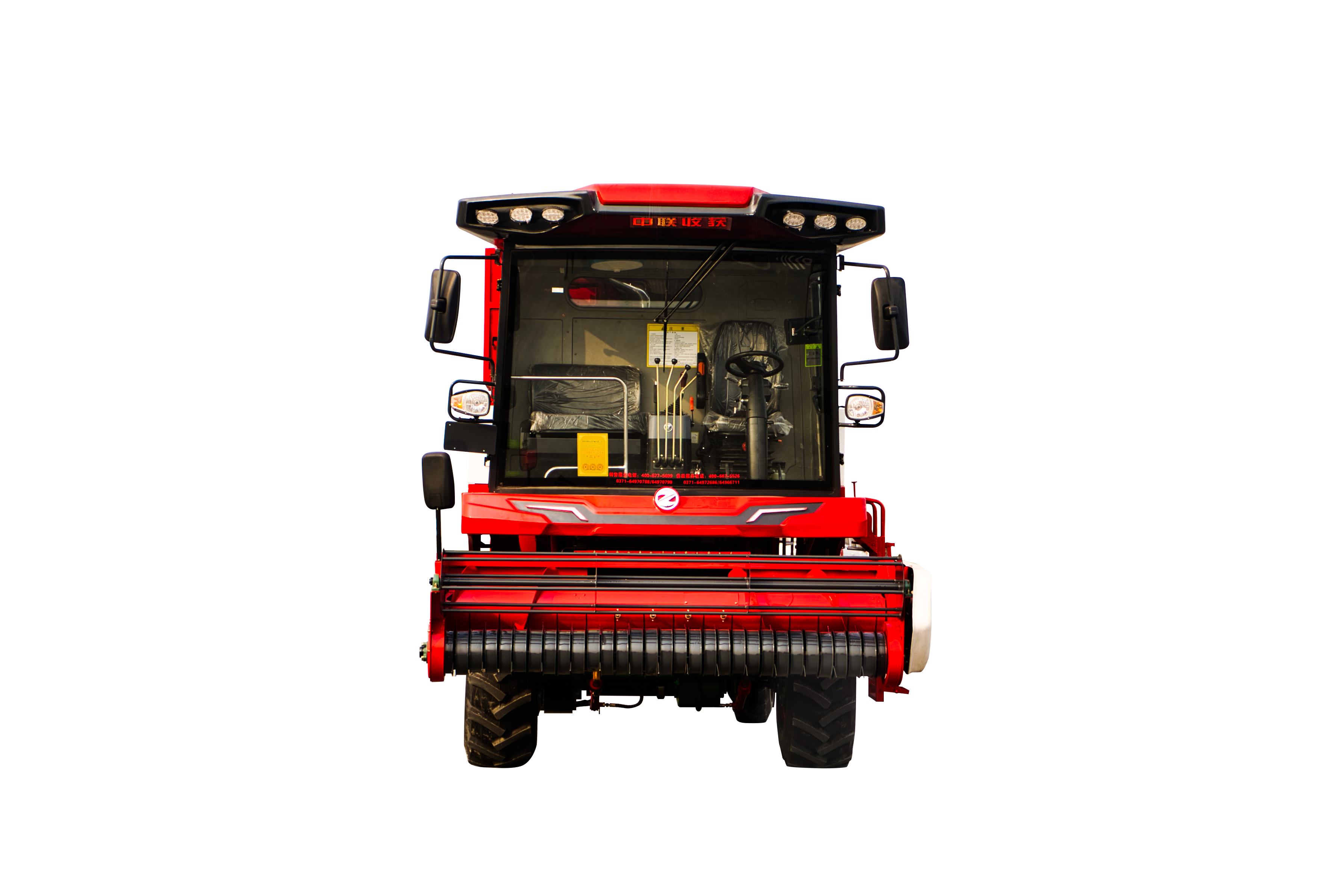

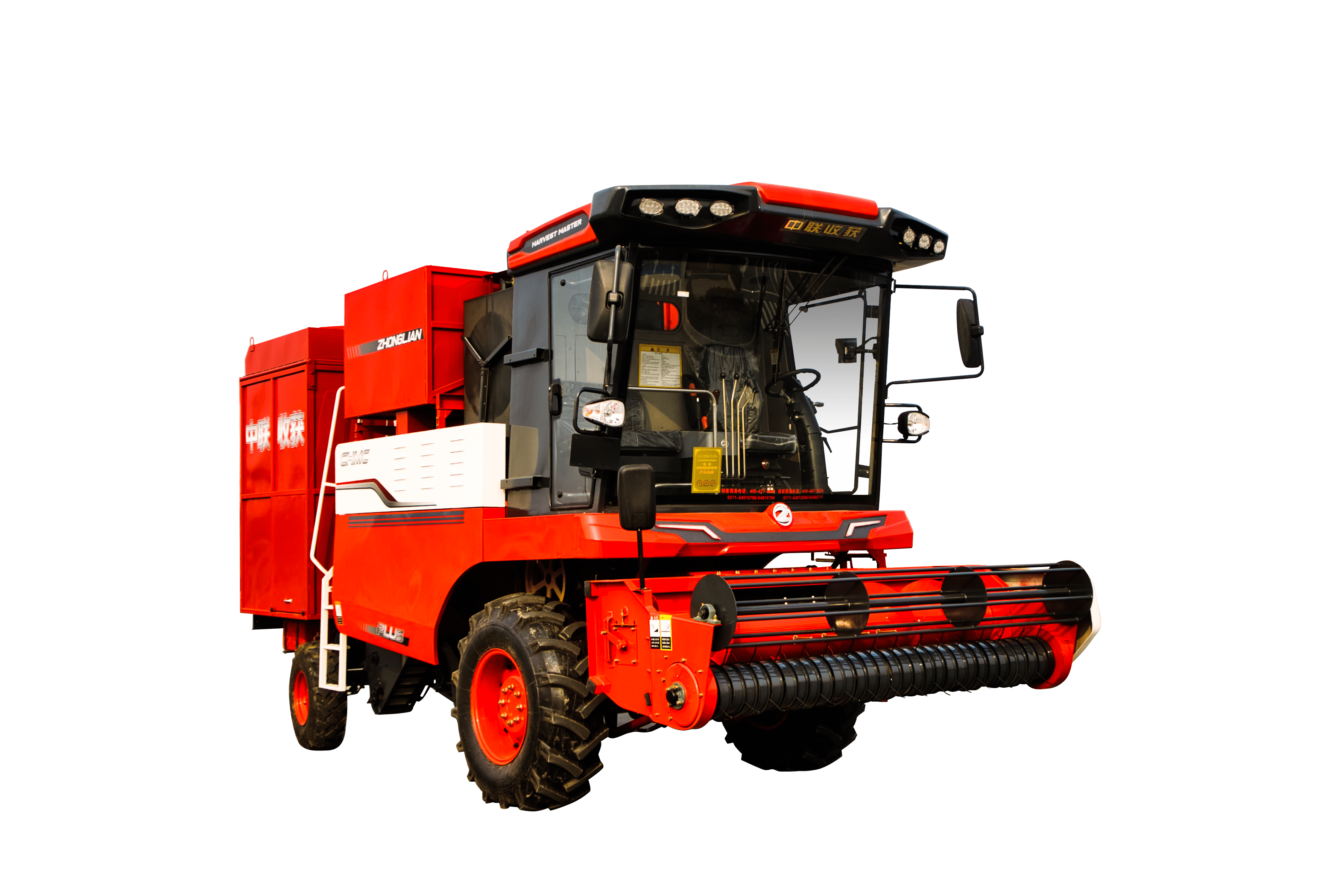

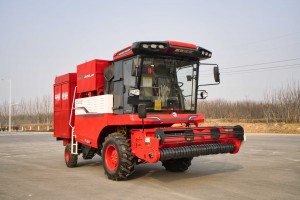

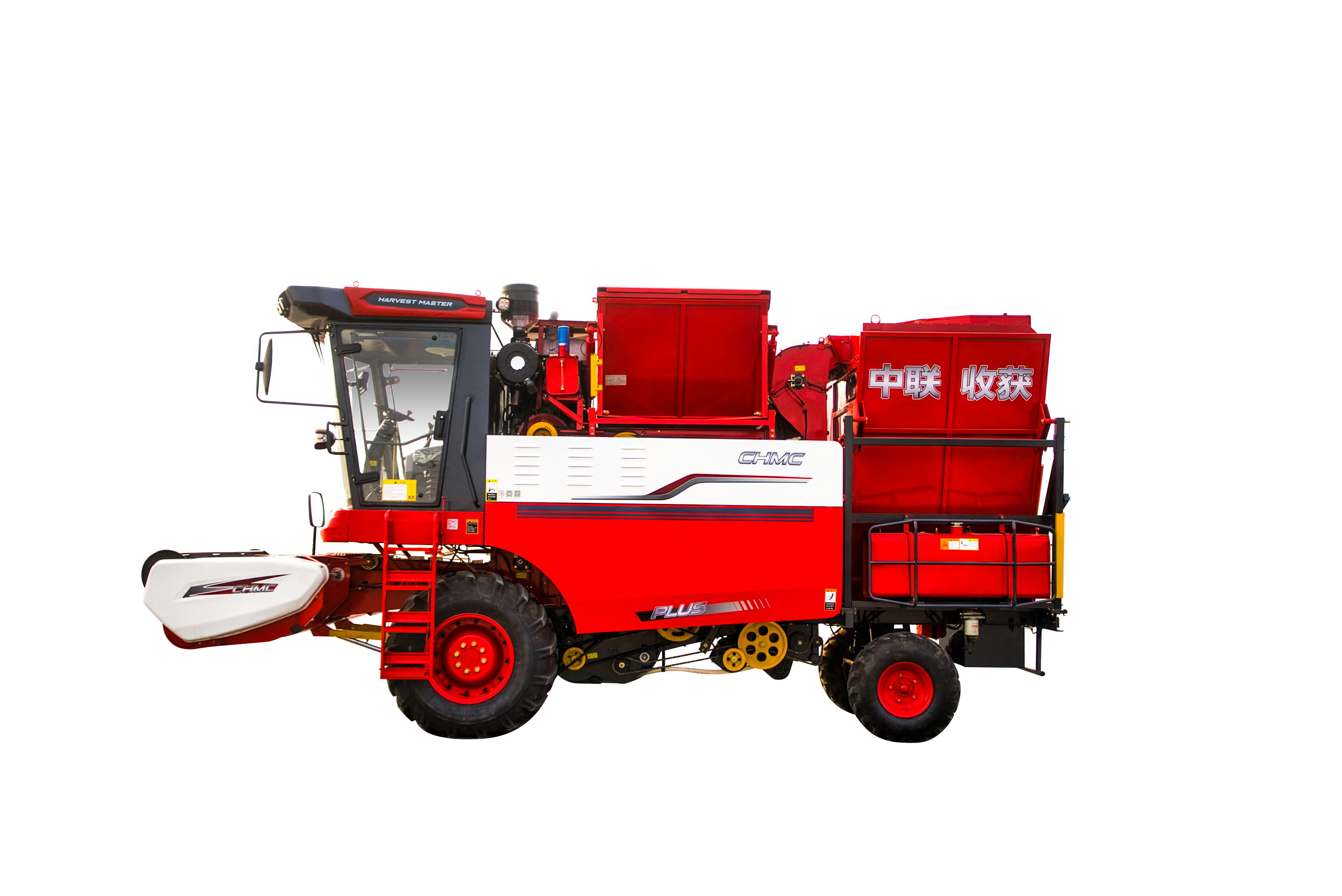

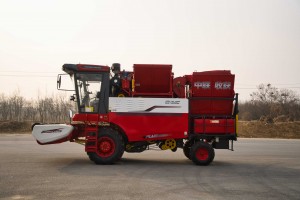

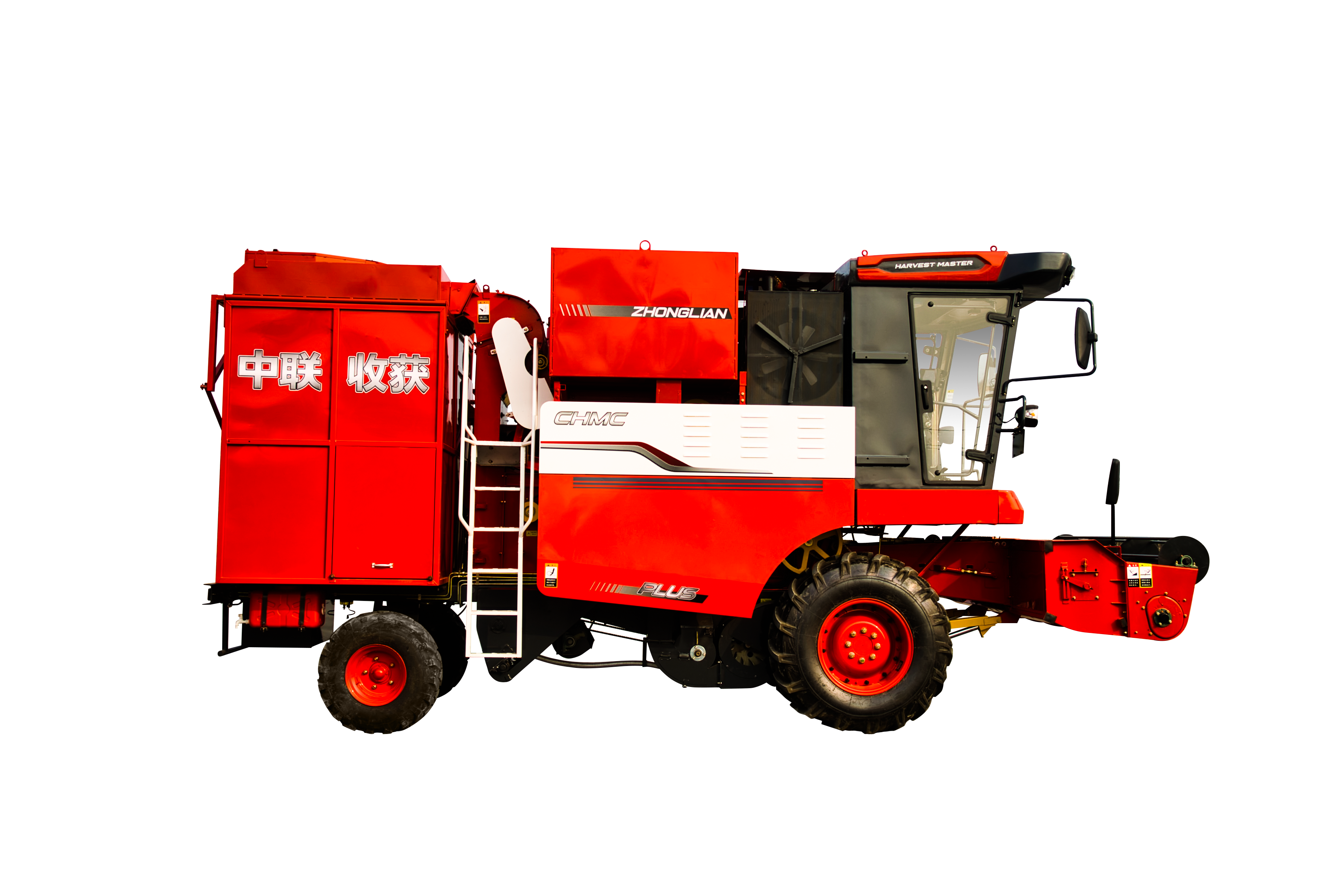

   4HJL-6 Self-propelled Peanut Picking Harvester
   Model		Type No.		4HJL-6
   		Structural style		full feed self-propelled wheel type
   		Size ( L, W, H )		7100*2790*3420 mm
   		Weight		6790 kg
   		Gear box type		mechanical
   		power		175HP
   		speed		2200 r/min
   		Oil tank		/
   		Oil consumption		/
   Performance		Cutting width		2550 mm
   		Feedinig rate		6kg/s
   		Work efficiency		0.5 – 0.8 hectare/hour
   		Minimum ground clearance		260 mm
   		Fruit unloading way		hydraumatic side dumping
   		Fruit tank capacity		2.21 m³
   Wheel		Type of drive		4x2wd
   		Wheel distance	guide	1920 mm
   			drive	1795 mm
   		Tyre size	guide	15 – 24
   			drive	10.0/75 – 15.3

   Packaging & Shipping

   2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.



   After-Sales Service

   1. Training how to install and use the machine,engineers available to service machinery overseas.

   2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

   3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.

   FAQ:

   Q1. How long is the delivery date?

   A :In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.



   Q2. How can I visit your factory?

   A:We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient



   Q3: What’s your main products?

   A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.



   Q4. What is your terms of payment?

   A: T/T, L/C, Paypal,Western Union



   Q5: How is the quality of the harvesrter?

   A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.

1. We need to apart some parts from the whole machine.
