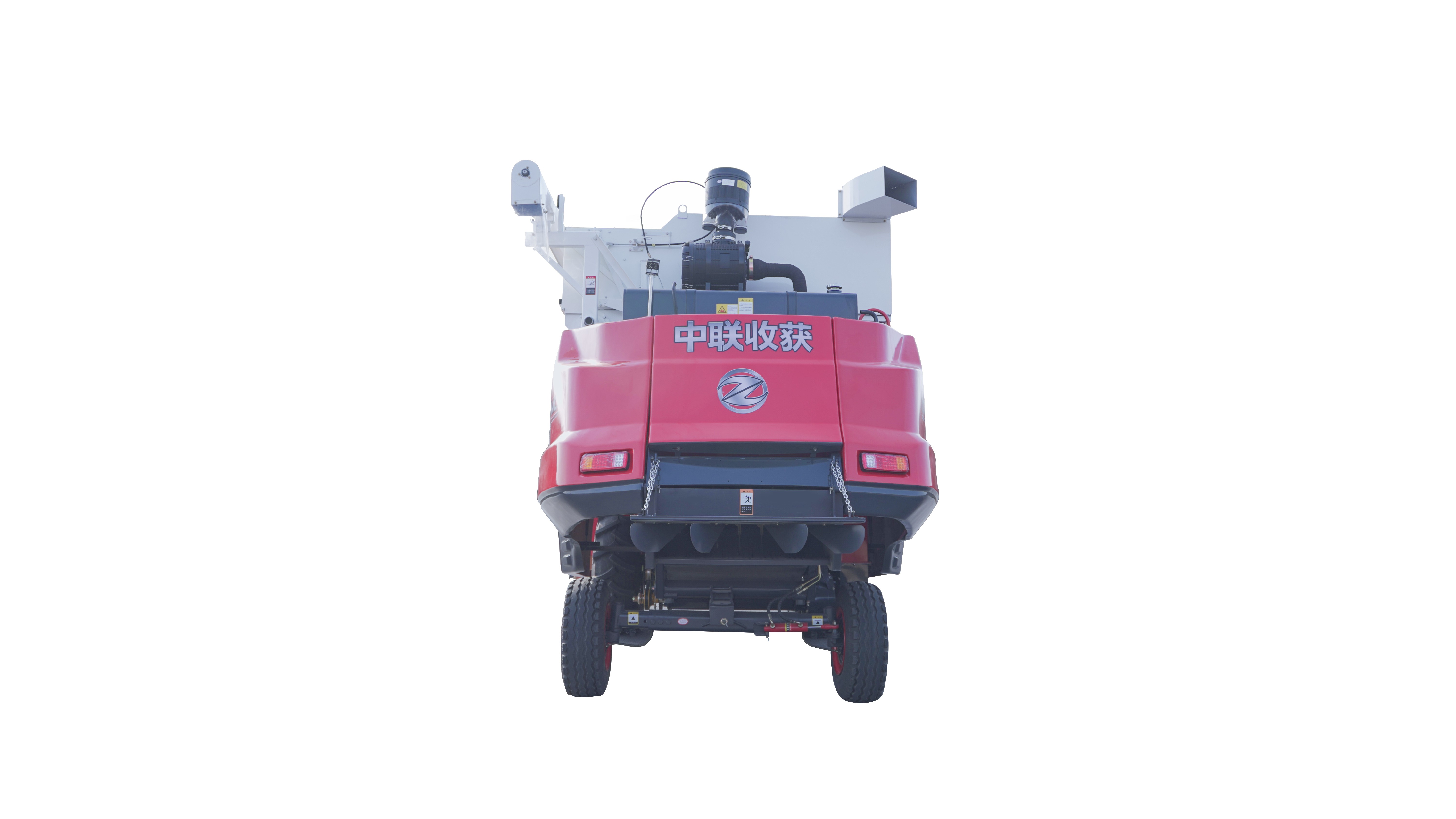

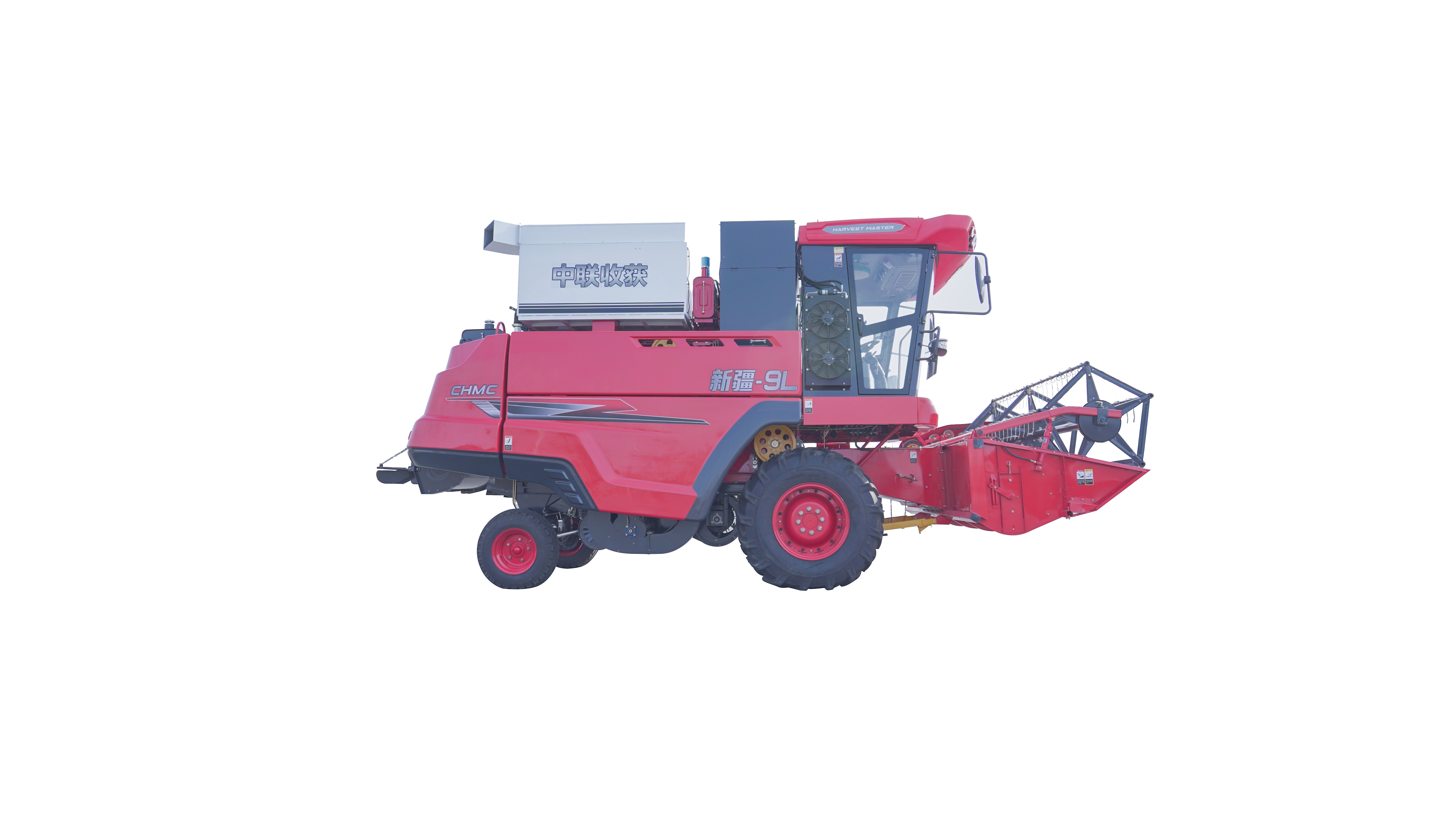

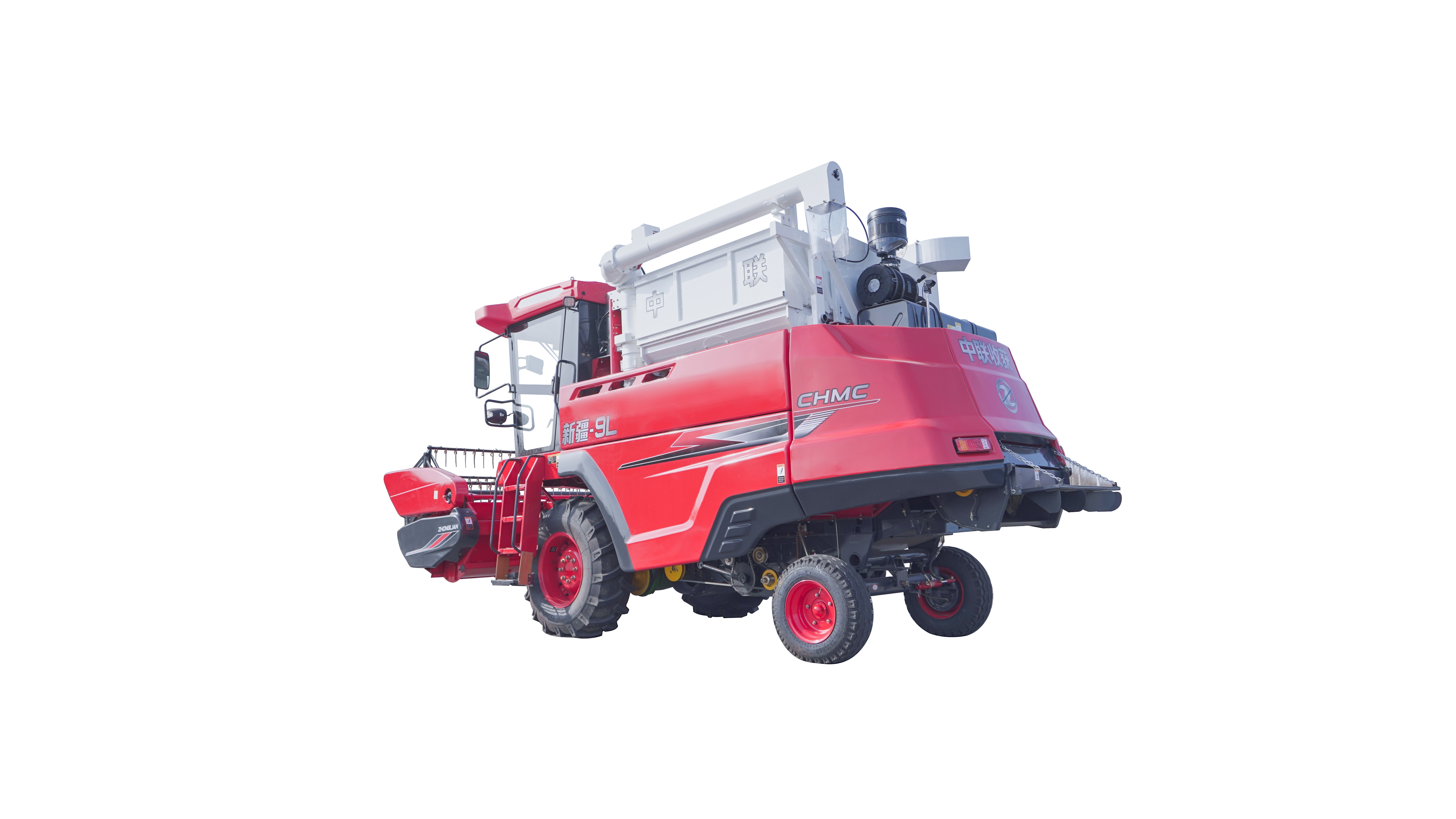

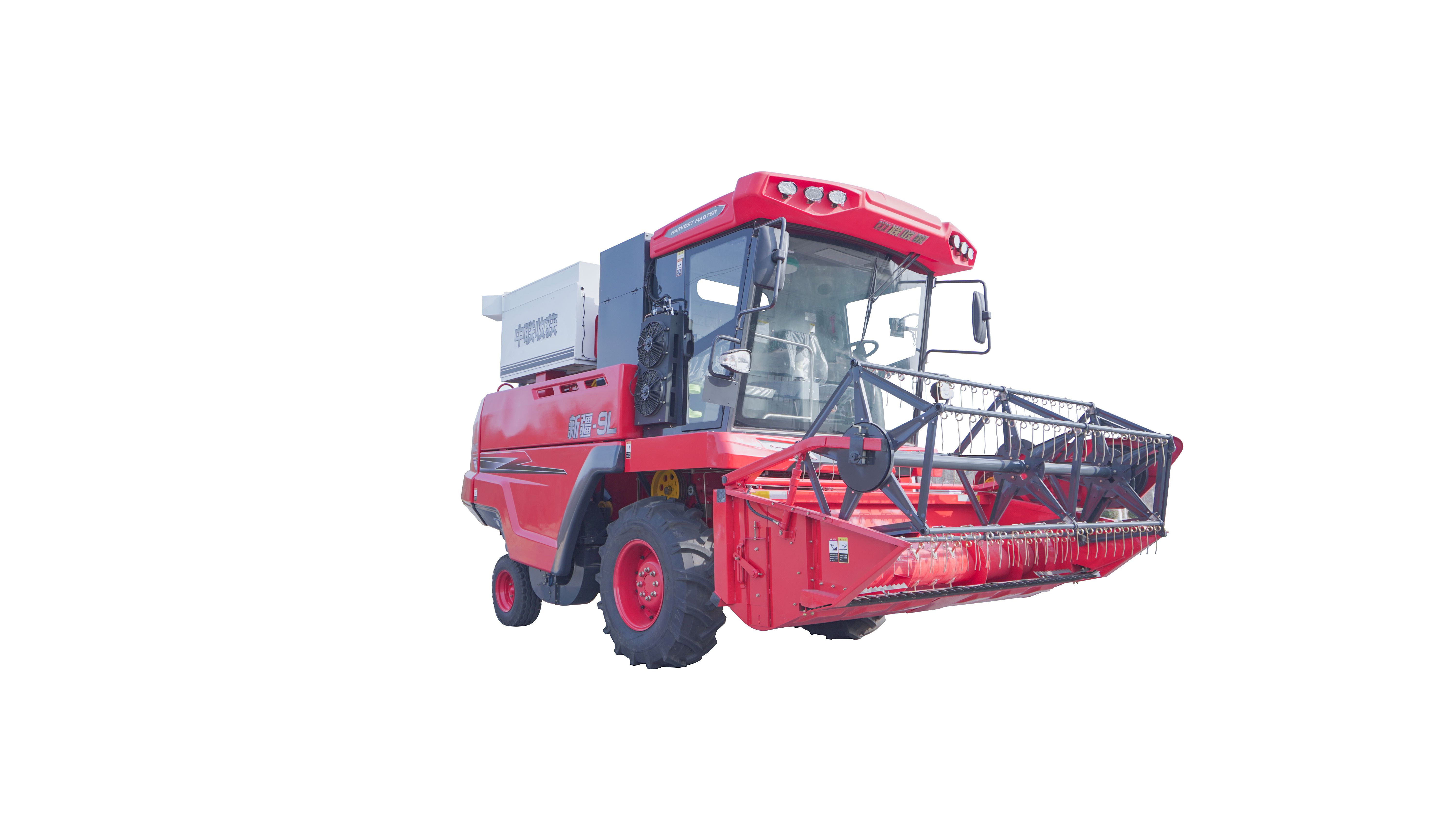

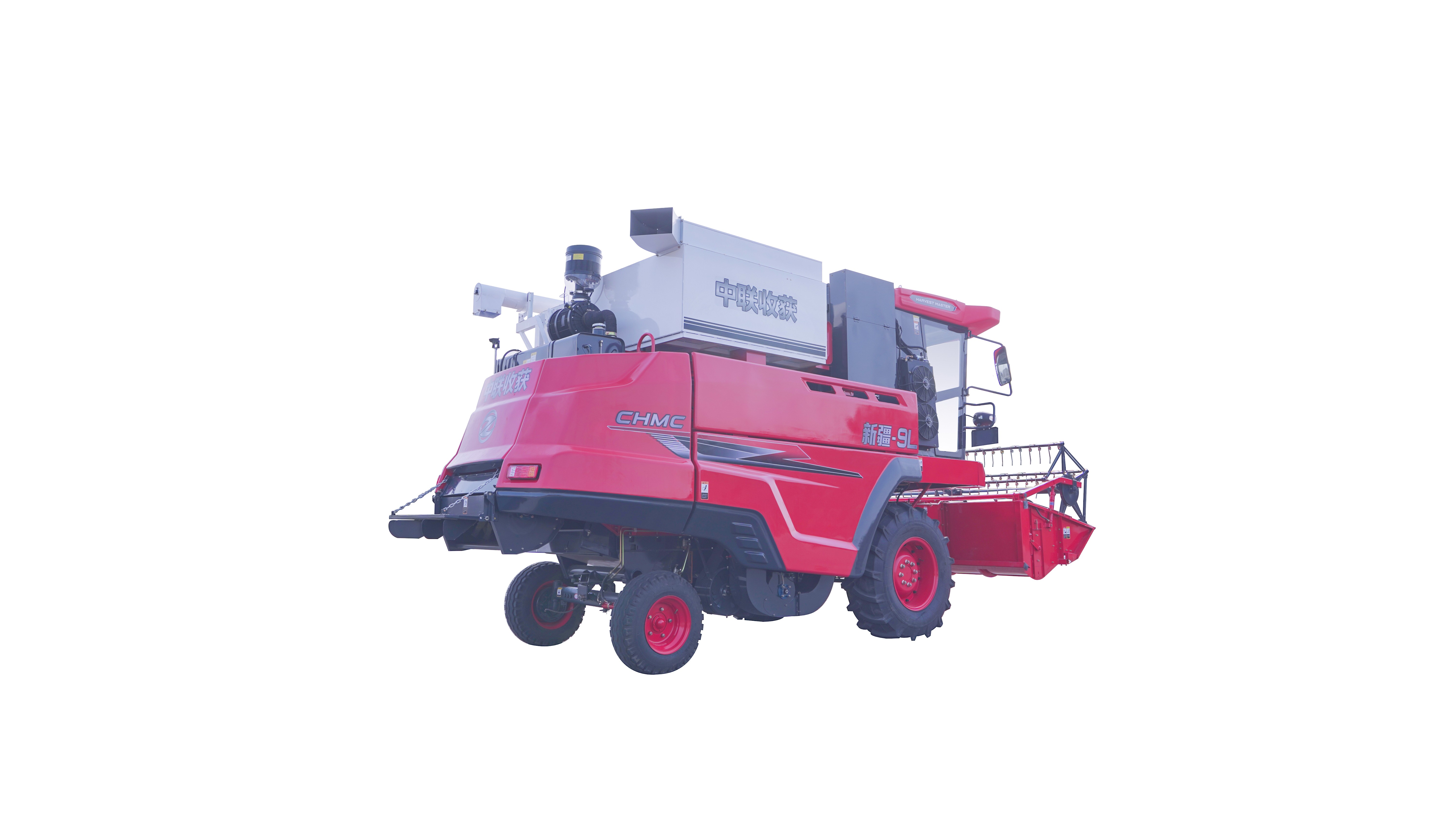

Self-propelled Grain Combine Harvester
Product description
“Zhonglian Harvest” 4LZ-9L self-propelled all-feed grain combine adopts the cutting flow + longitudinal axial flow roller threshing separation technology, strong threshing ability, complete material separation; Compact structure of the whole machine,
Practical and beautiful, widely adapted to the whole region, the whole time, the whole crop of efficient harvest. One machine multi-purpose harvest wheat, rice, millet, sorghum, corn grain, soybean and other different crops, madeIt’s longer, it’s broader, it’s more profitable.
Product parameter
| serial number | project | unit | design value | |
| 1 | Model Name | / | 4LZ-9L Self-propelled Wheeled Grain Combine Harvester | |
| 2 | Structure type | / | self-propelled wheeled | |
| 3 | Supporting engine manufacturers | / | Yu Chai | |
| 4 | Matching engine structure type | / | vertical, in-line | |
| 5 | Number of matching engine cylinders | cylinder | 4 | |
| 6 | Matching engine rated power | kW | 139.7kw | |
| 7 | Matching engine calibration speed | r/min | 2200 | |
| 8 | Overall dimensions of the whole machine (length × width × height) | mm | 7300×3050×3420 | |
| 9 | Machine quality | kg | 6010 | |
| 11 | Header working width | mm | 2840 | |
| 12 | Minimum ground clearance | mm | 260 | |
| 13 | Knife type | / | Type II | |
| 14 | feeding amount | kg/s | 9 | |
| 15 | Working gear | / | I gear, II gear | |
| 16 | Working speed | km/h | 3 to 9 | |
| 17 | Working hour productivity | hm2/h | 0.8～1.5 | |
| 18 | Fuel consumption per unit operation | kg/hm2 | ≤35 | |
| 19 | Header auger type | / | Spiral finger | |
| 20 | Track ground pressure | kPa | / | |
| 21 | reel type | / | Eccentric spring tooth | |
| 22 | Reel diameter | mm | 1032 | |
| 23 | Number of reels | Piece | 5 | |
| 24 | Layout of threshing mechanism | / | Tangential flow + longitudinal axial flow | |
| 25 | Number of threshing drums | Piece | 2 | |
| 26 | Type of main threshing drum | / | Axial flow | |
| 27 | Auxiliary threshing drum type | / | Cut flow | |
| 28 | Dimensions of main threshing drum (outer diameter x length) | mm | 823×2000 | |
| 29 | Dimensions of auxiliary threshing drum (outer diameter × length) | mm | 420×900 | |
FAQ:
Q1. How long is the delivery date?
A :In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.
Q2. How can I visit your factory?
A:We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient
Q3: What’s your main products?
A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.
Q4. What is your terms of payment?
A: T/T, L/C, Paypal,Western Union
Q5: How is the quality of the harvesrter?
A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.
Packaging & Shipping
1.We need to apart some parts from the whole machine.
2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.
After-Sales Service
1. Training how to install and use the machine,engineers available to service machinery overseas.
2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.
