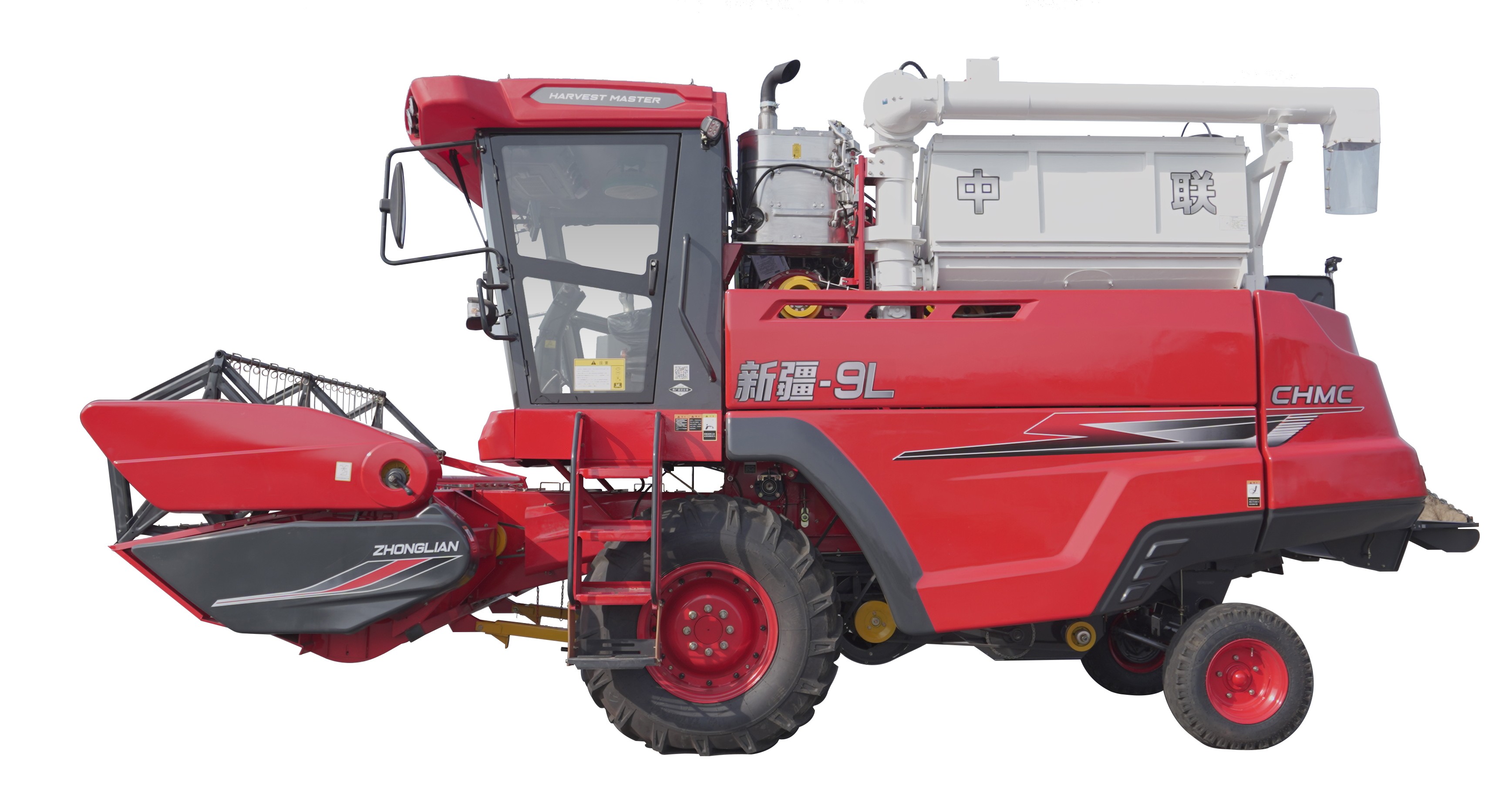

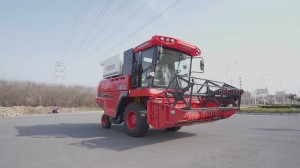

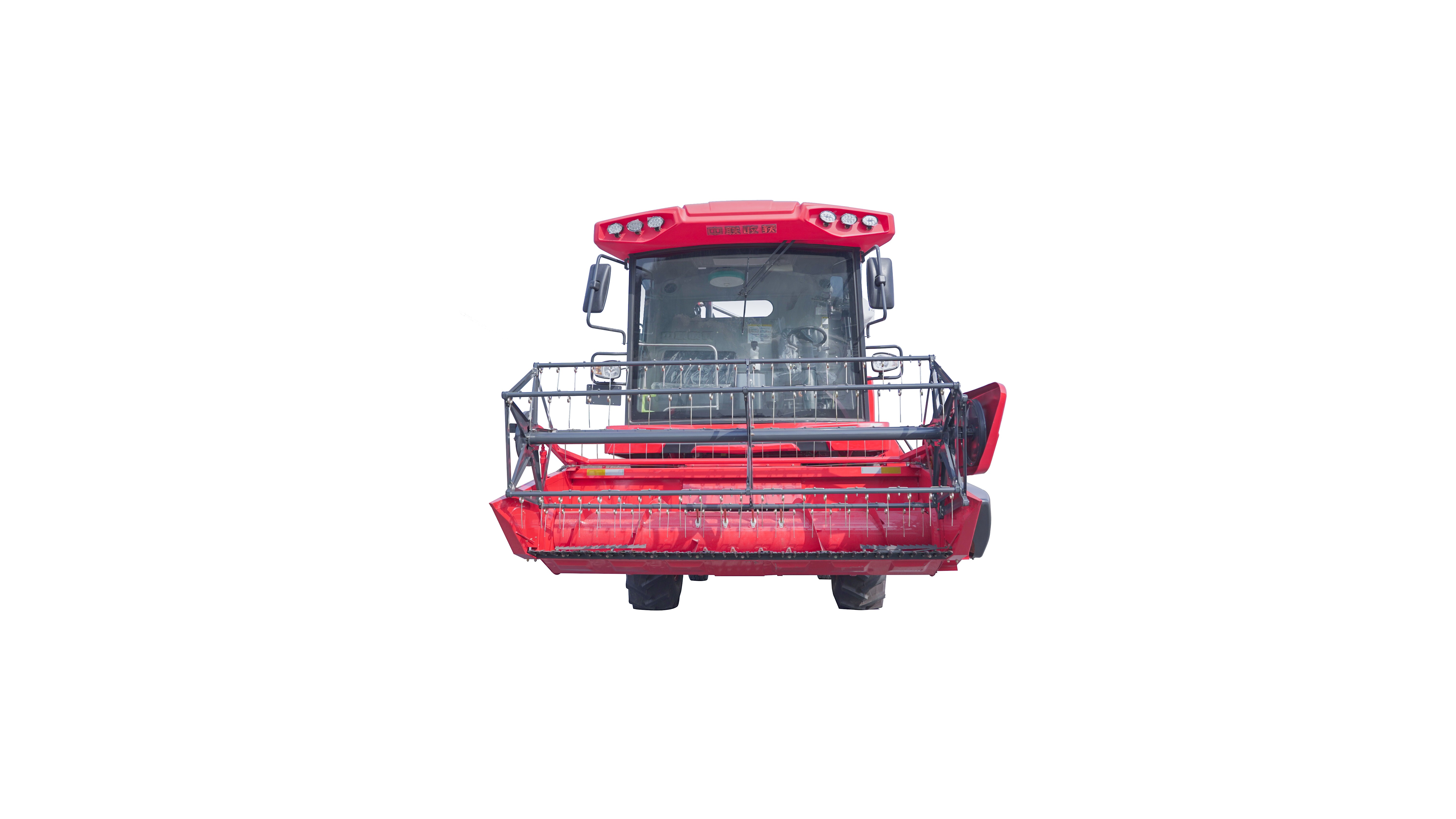

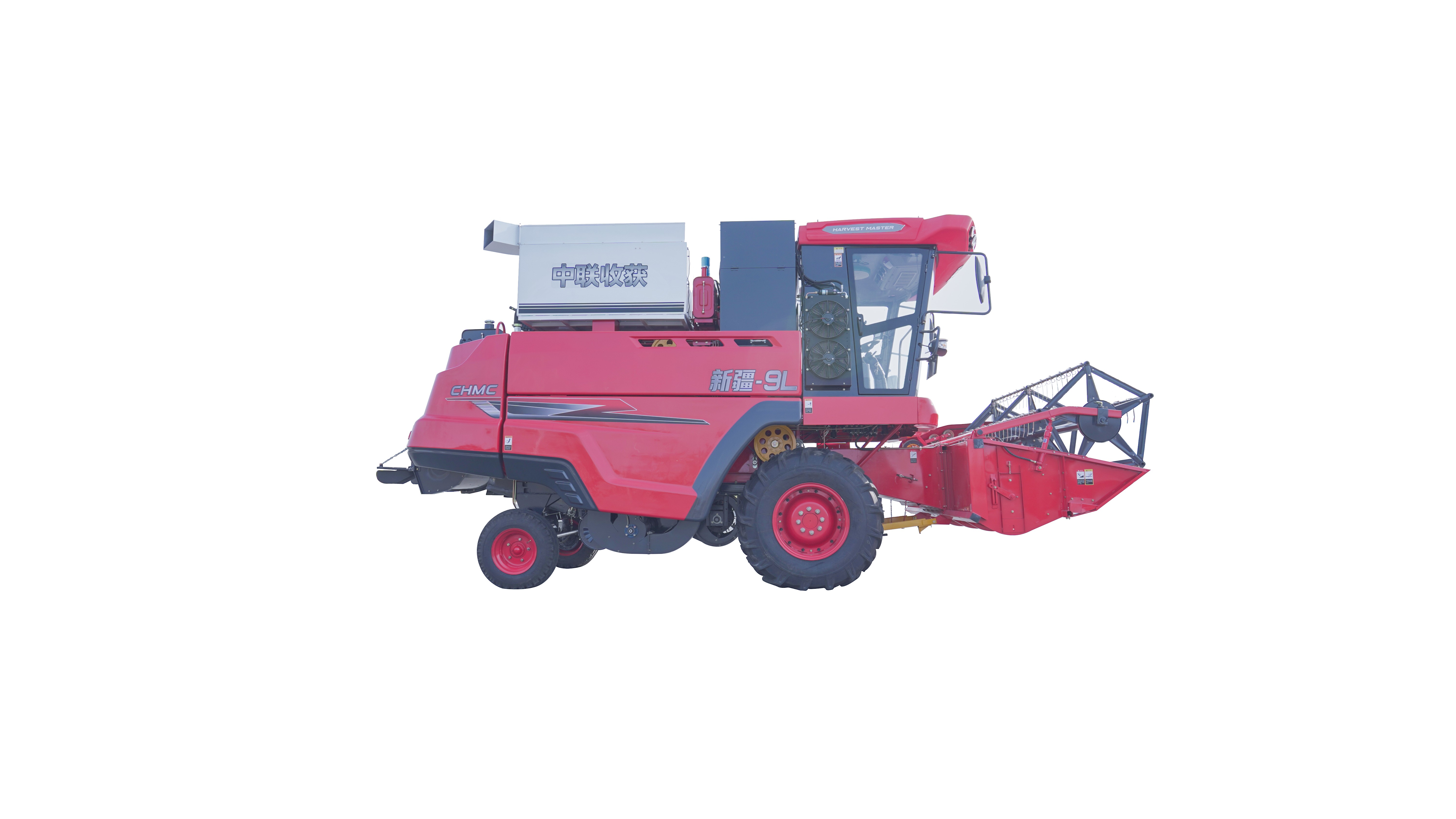

4LZ-9L Self-propelled full feed into the grain combine
“Zhonglian Harvest” type 4LZ-9L self-propelled full feed grain combine harv ester adopts the “tangential flow and longitudinal axial flow drum” threshing separation technology, which has strong a threshing ability and can separate the r materials thoroughly; The whole harvester has a compact structure, is practical and beautiful and is widely suitable for efficient harvesting of all regions, all time a and all crops. One harvester has multiple functions, it can harvest different crops such as wheat, rice, grain, sorghum, corn kernels, soybeans, etc, with longer working time, wider working scope, and more income for users.
| serial number | project | unit | design value | |
| 1 | Model Name | / | 4LZ-9L Self-propelled Wheeled Grain Combine Harvester | |
| 2 | Structure type | / | self-propelled wheeled | |
| 3 | Supporting engine manufacturers | / | Yu Chai | |
| 4 | Matching engine structure type | / | vertical, in-line | |
| 5 | Number of matching engine cylinders | cylinder | 4 | |
| 6 | Matching engine rated power | kW | 139.7kw | |
| 7 | Matching engine calibration speed | r/min | 2200 | |
| 8 | Overall dimensions of the whole machine (length × width × height) | mm | 7300×3050×3420 | |
| 9 | Machine quality | kg | 6010 | |
| 11 | Header working width | mm | 2840 | |
| 12 | Minimum ground clearance | mm | 260 | |
| 13 | Knife type | / | Type II | |
| 14 | feeding amount | kg/s | 9 | |
| 15 | Working gear | / | I gear, II gear | |
FAQ:
Q1. How long is the delivery date?
A :In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.
Q2. How can I visit your factory?
A:We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient
Q3: What’s your main products?
A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.
Q4. What is your terms of payment?
A: T/T, L/C, Paypal,Western Union
Q5: How is the quality of the harvesrter?
A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.
Packaging & Shipping
1.We need to apart some parts from the whole machine.
2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.
After-Sales Service
1. Training how to install and use the machine,engineers available to service machinery overseas.
2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.
