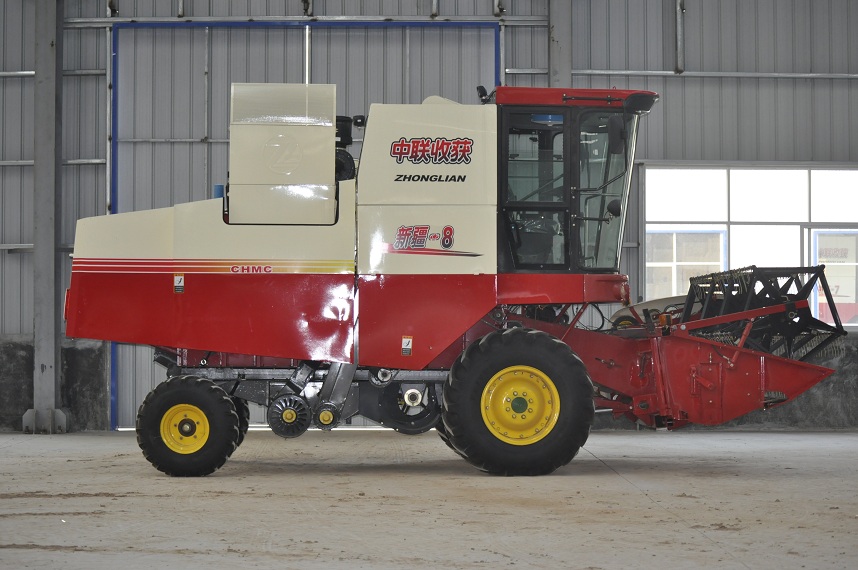

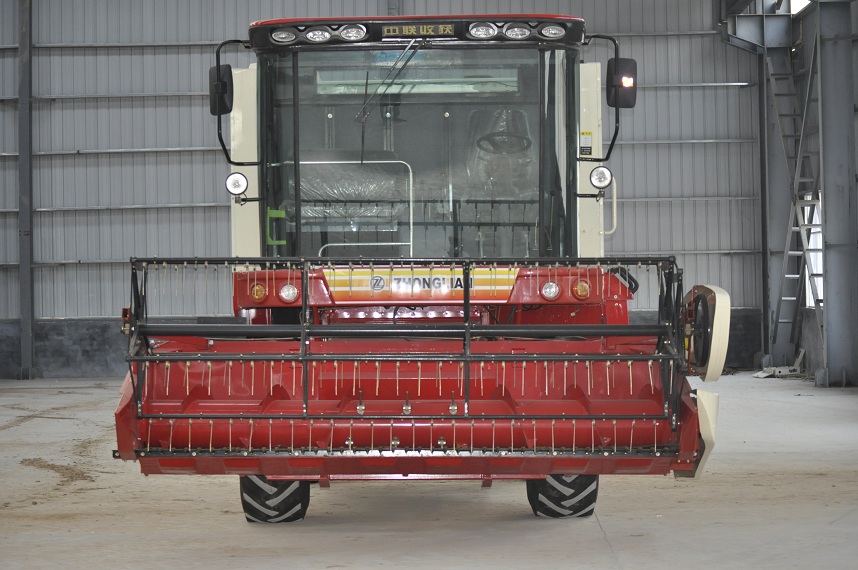

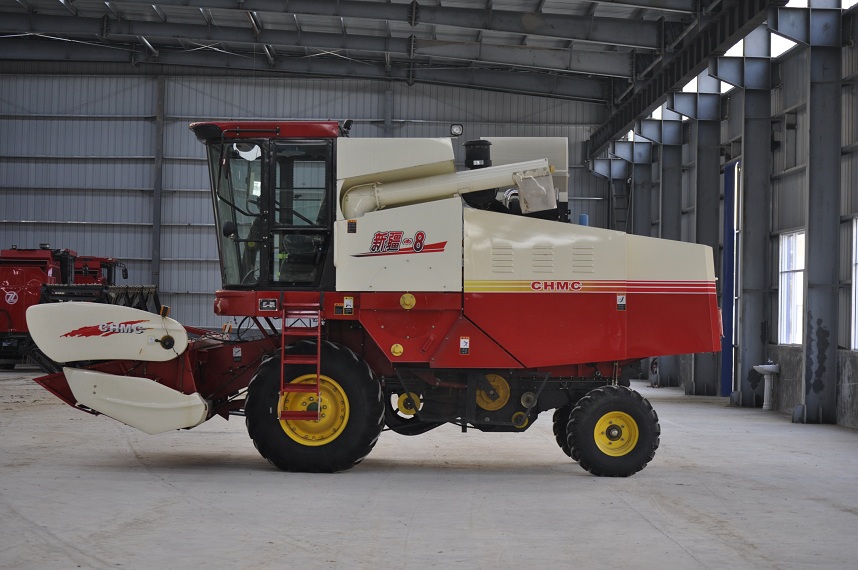

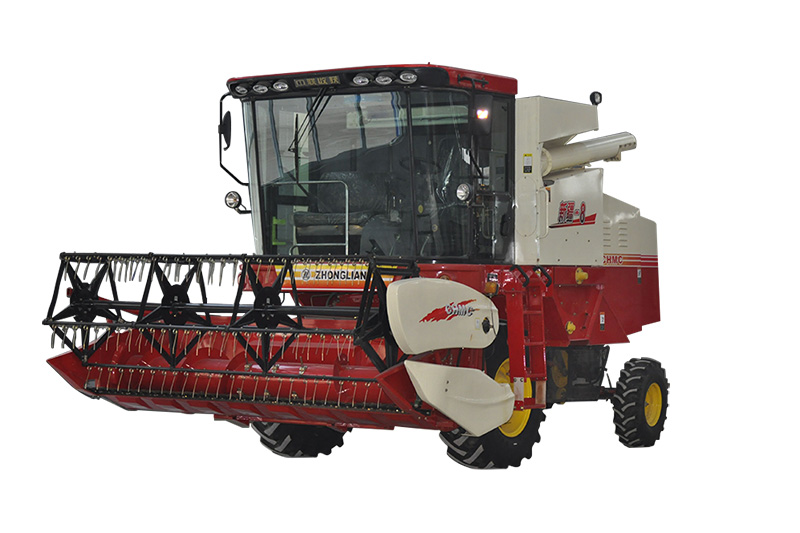

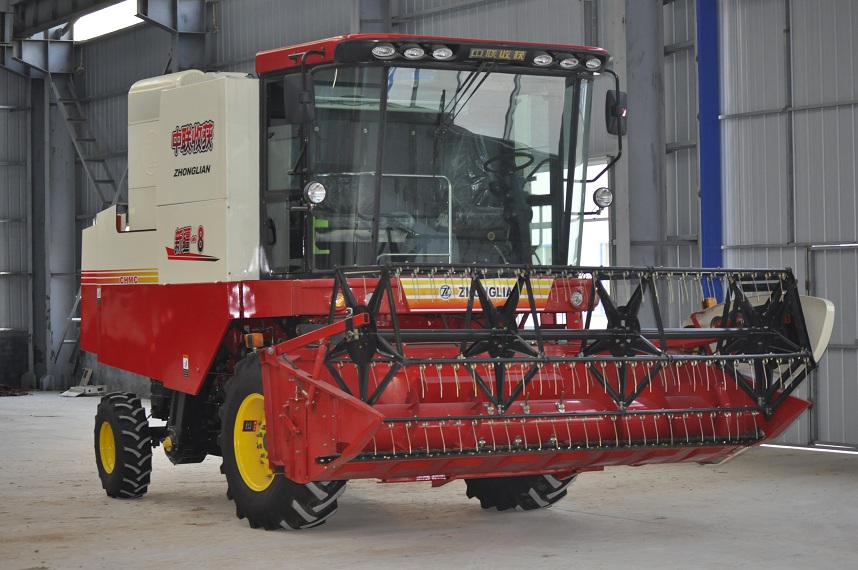

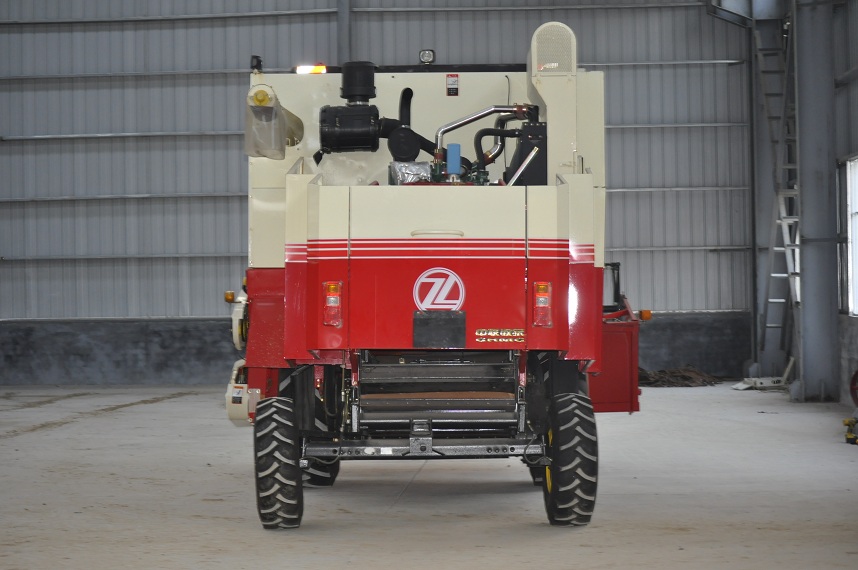

8A Rice/wheat combine harvester
1. 2500mm separation tube, add separation area 50%, improve separation effect
2. Two side remove grass facility, improve harvester efficiency 50%.
3. Multi-level cleaning system, make the rice more clean,with no grass, no chaff.
4. Widen elevator,Increase granary, reduce unloading rice times.
5. Sealed cab, this reduce the noise, make the driver feel more comfortable.
6. Lengthen the middle bridge, the driver can see more clearly, more bigger range.
7. Steering wheel in one side of the cab.
8. Technical parameters:
| Model | 8A |
| Type | tyre |
| Wheel | 2 drive wheel, 2 direction wheel |
| Size | 6640*3600*3430 mm |
| NW | 6260 Kg |
| Function | Cutting and threshing |
| Power | 160HP |
| Speed | 2200 r/min |
| Style | 4 cycle diesel |
| Cutting width | 3270 mm |
| Feed quantity | 8Kg/s |
| Work efficiency | 0.8-1.2 ha/hour |
| Oil consumption | ≤20 kg/hectare |
| Drive speed | 1.7-22.4 hm/h |
| Minimum grain height from field | 290mm |
| Grain unloading | Mechanical |
| Grain tank | 2000 L |
| Fuel tank | 200 L |
| Gear box | Mechanical |
| Threshing system | |
| Type | Rasp bar |
| No. of rasp bars: | 8 |
| Cylinder diameter | 550 mm |
| Cylinder width | 900 mm |
| Total loss | |
| Total loss rate for wheat | ≤1.2% |
| Total loss rate for rice | ≤3% |
| Breakage rate | ≤1.0% |
| Impurity rate | ≤2.0% |
