3 rows corn combine harvester

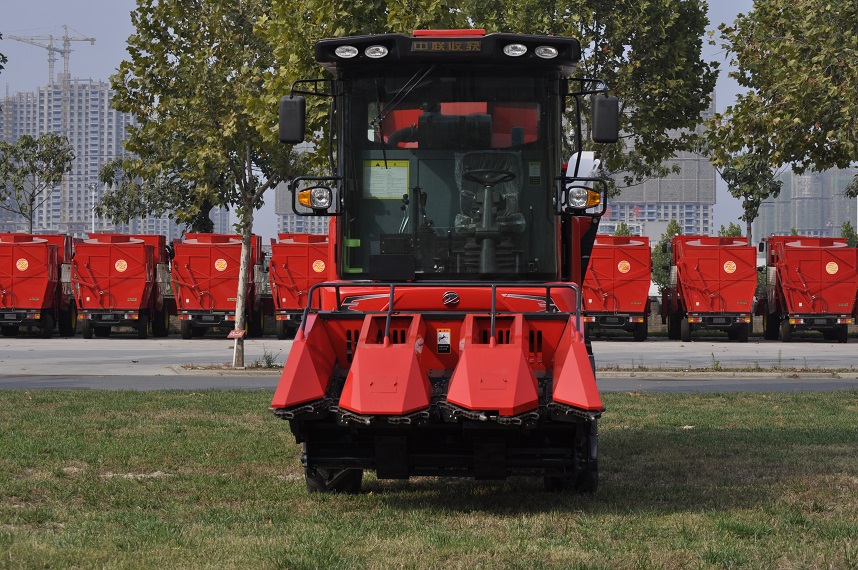

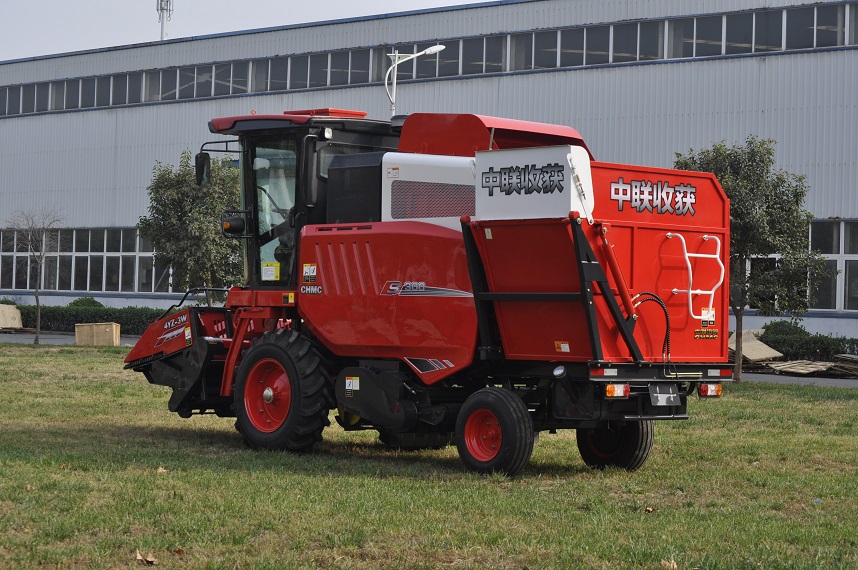

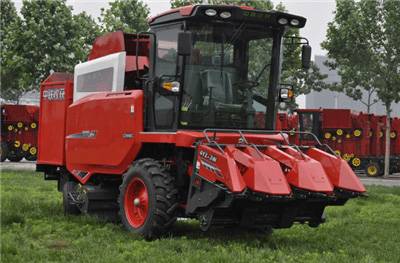

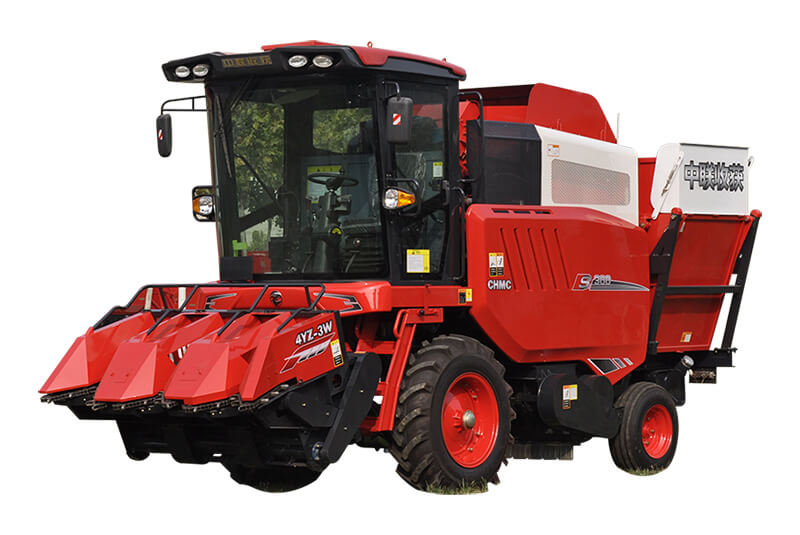

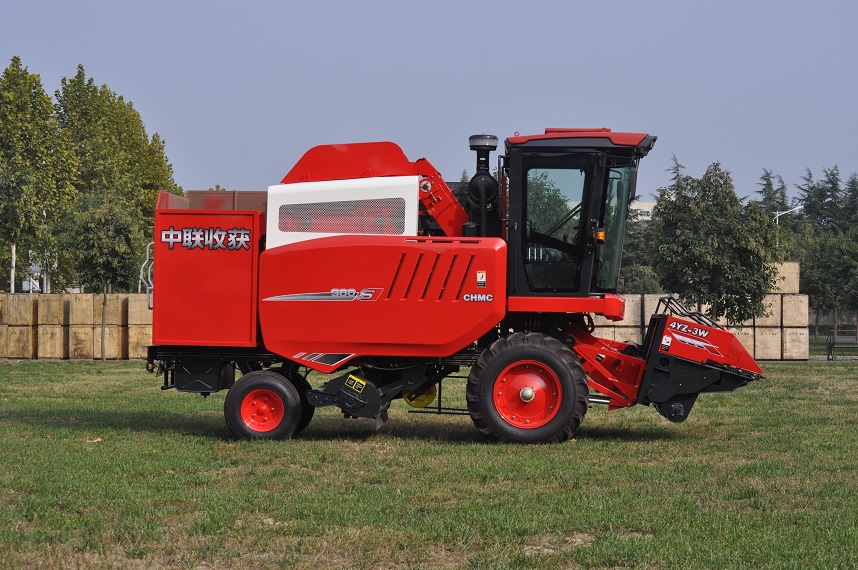

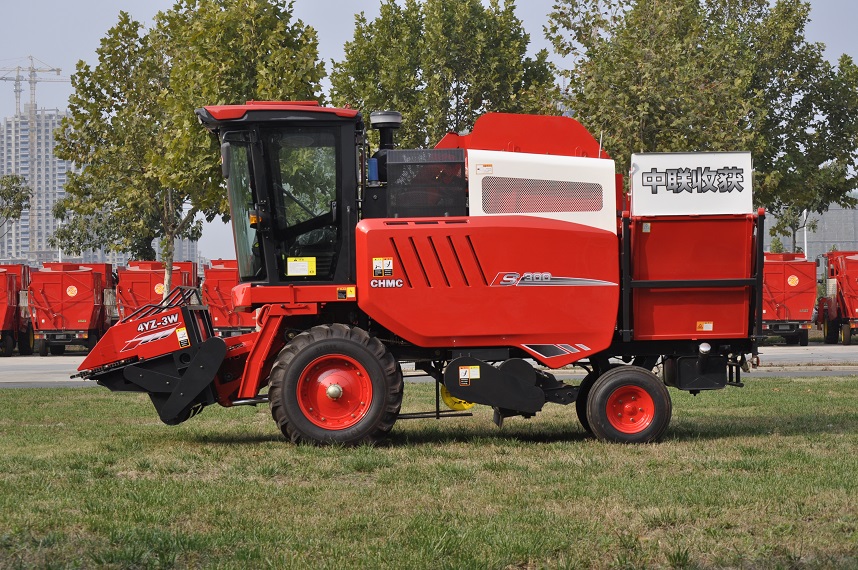

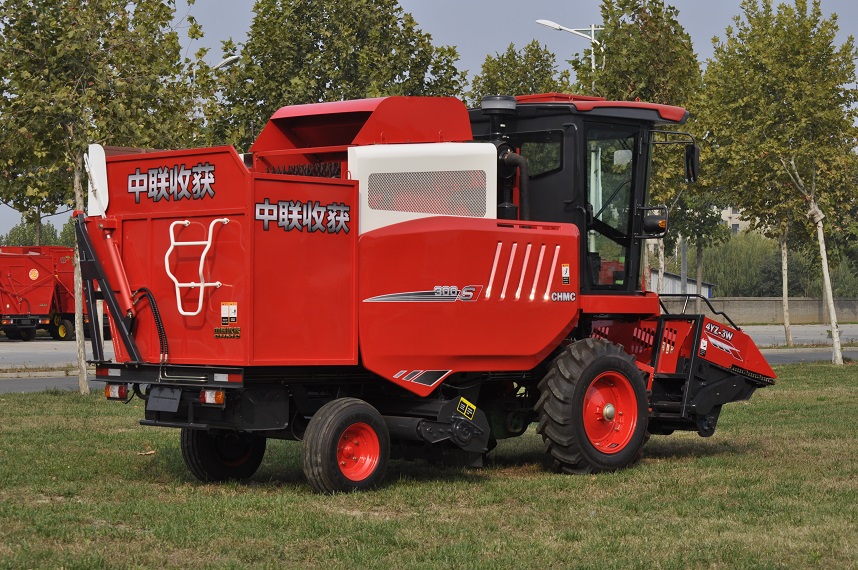

| Pictures |
|
| ||
| Model | Type No. | 3 rows | ||
| Structural style | self-propelled wheel type | |||
| Function | pick, peel, cut and shatter the straw, return shattered straw to field | |||
| Size ( L, W, H ) | 6190*2300*3259 mm | |||
| Weight | 4400 kg | |||
| Gear box type | mechanical + stepless speed change(CVT) | |||
| Engine | model | 4H11, changchai diesel | ||
| power | 103KW | |||
| speed | 2300 r/min | |||
| Oil tank | / | |||
| Oil consumption | ≤20 kg/hectare | |||
| Performance | Cutting width | 1820 mm | ||
| Harvester rows | 3 rows | |||
| Picking roller type | double-screw type | |||
| Peeling roller number | 4 units (16 pieces) | |||
| Peeling roller type | trough type, rubber roller + iron roller | |||
| Rows distance | 500-700 mm | |||
| Work efficiency | 0.4 - 0.6 hectare/hour | |||
| Drive speed | 2.88-20.1 km/h | |||
| Working speed when harvesting | 3.31-6.59 km/hour | |||
| Max unloading height | 1780 mm | |||
| Minimum ground clearance | 290 mm | |||
| harvest moisture required | 20%-30%(corn grain), ≤60%(corn straw) | |||
| corn ear height | ≥450mm | |||
| Transverse and longitudinal slope required | ≤8° | |||
| Total loss rate | ≤4 % | |||
| Seed damage rate | ≤1 % | |||
| Peeling rate | ≥85 % | |||
| Straw crushing rate | ≥85 % | |||
| Impurity rate | ≤1.5 % | |||
| Stubble height | ≤100mm | |||
| Grain unloading way | hydraumatic side dumping | |||
| Grain tank capacity | 1.7m³ | |||
| Straw crushing and returning machine | 1JHY-185, 1750mm width | |||
| Wheel | Type of drive | 2 wheels drive | ||
| Wheel distance | guide | 1458 mm | ||
| drive | 1660 mm | |||
| Tyre size | guide | 10 - 15 | ||
| drive | 13.6 - 24 | |||
| Min.radius of curve | left turn | 6250 mm | ||
| right turn | 6200 mm | |||
Product Features:
The whole machine adopts a brand-new design concept and gives people a new visual feast.
With the CVT system, the engine can change its speed automatically. It is more convenient to operate.
Short machine body, short front-back wheel distance, small turning radius, easy to turn around in field, high harvesting efficiency.
The cutting table adopts the forced feeding method of the dialing grain chain. It does not need to be in line when working and can be harvested horizontally. The machine suits different corn planting structure, different row space, and different corn varieties.
Adopt double-screw picking roller, pull the corn stick into cutter table, not roller intertwining and blocking, less broken stem, lower seed damage rate.
Adopt flexible finger soft peeling technology, 4 units peeling device, 16 pieces peeling rollers, clean peeling , less seed damage rate and seed lose rate.
Equipped with a slip-way seed recovery device, it can quickly unload the recovered seeds, with short time and high efficiency.
Equipped with a front hob and a middle slasher Straw crushing and returning device, the cutting stubble is low, and the stalks and stalks have a high smashing rate.
It adopts a fully enclosed large-circle arc glass cab, which has a wide field of vision, effectively reduces noise and makes driving comfortable. * The elevator and stripping machine adopts the speed monitoring alarm device to monitor the working status of the whole machine in real time and effectively reduce the failure.
Rear view system is configured to monitor the working status of grain tank and peeling machines in real time.

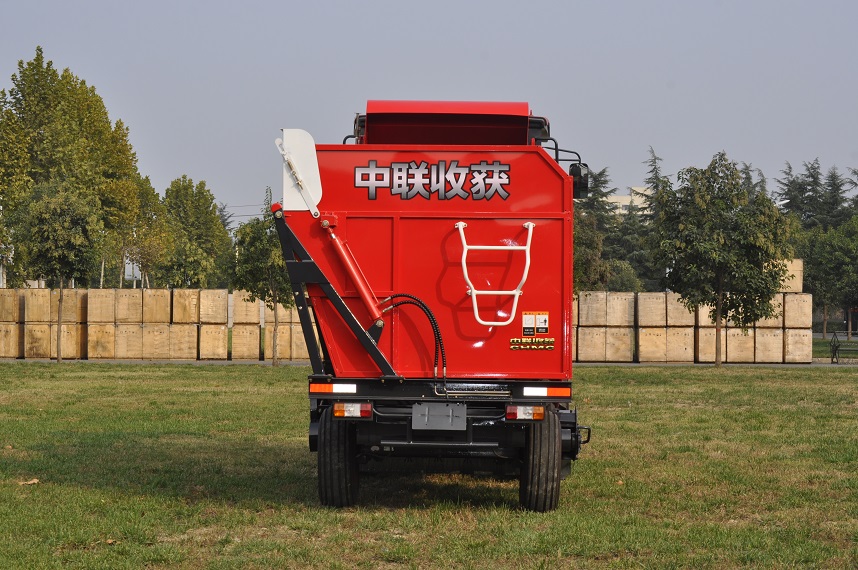

Adopt hydraumatic side dumping device, convenient for operating corn unloading.

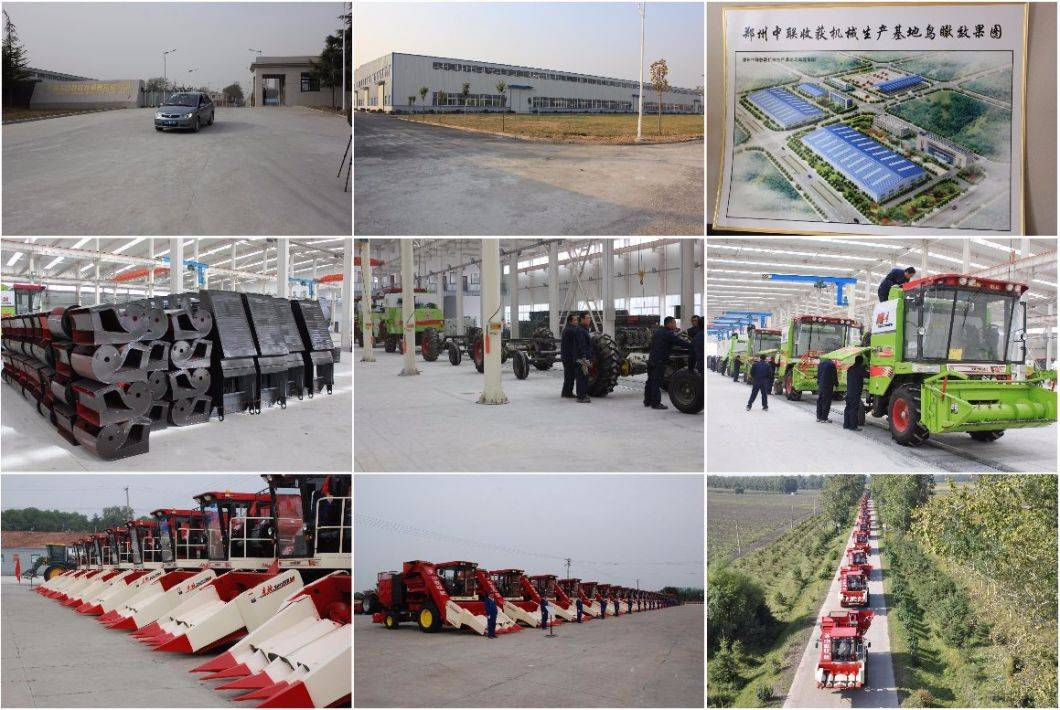

Factory:

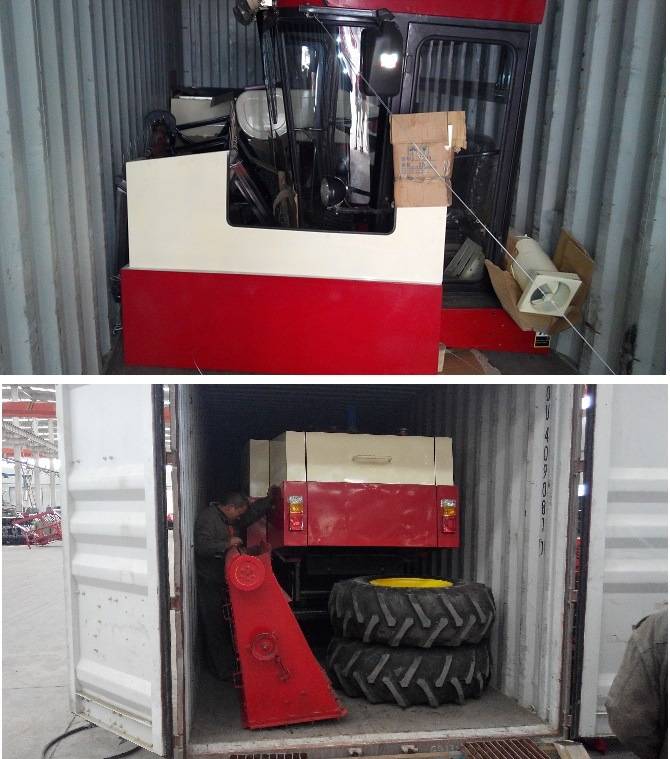

Transportation & Packing:
one machine in one 40 feet container
