High Quality Factory Price Multifunctional Mini Rice Wheat Grain Combine Harvester
Product Specification of mini harvester wheat:
| Product Name | mini harvester wheat |
| Model | 4LZ-8B1 |
| Feeding amount (kg/s) | 8 |
| Power( kw/hp) | 129/175 |
| Bridge width (mm) | 900 |
| Cut width (mm) | 2680 |
| Dimensions(mm) | 6700*3010*3350 |
| Total Weight (kg) | 5405 |
| Productivity (hm2/h) | 0.8-1.2 |
| Unloading method | High position (diverse) |
| Threshing method | Tangential+Horizontal axis flow |
| Front bridge | Open(Ring gear) |
| Air conditioning interface | reserved port |
| Total Loss Rate | Wheat≤1.2% Rice≤3.0% |
Brief introduction of mini harvester wheat

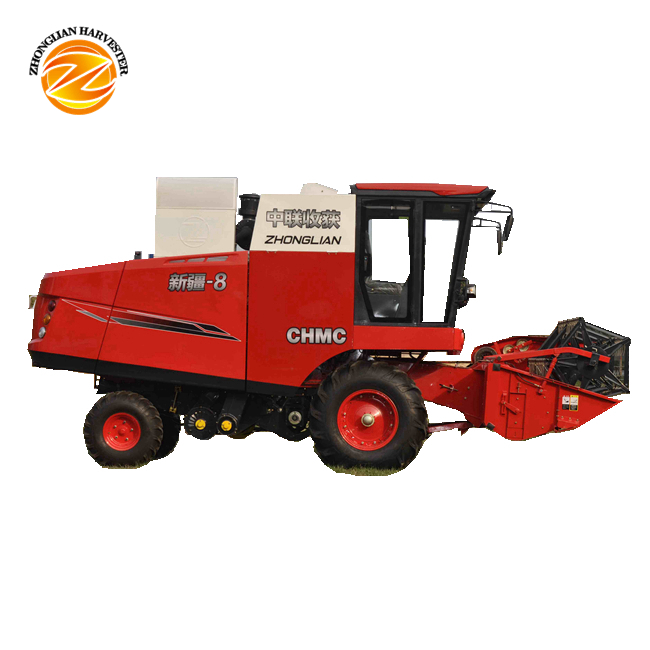

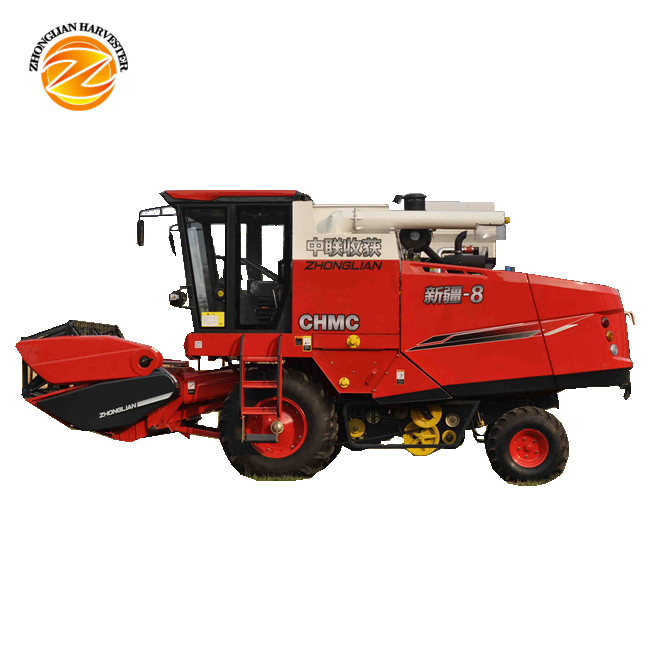

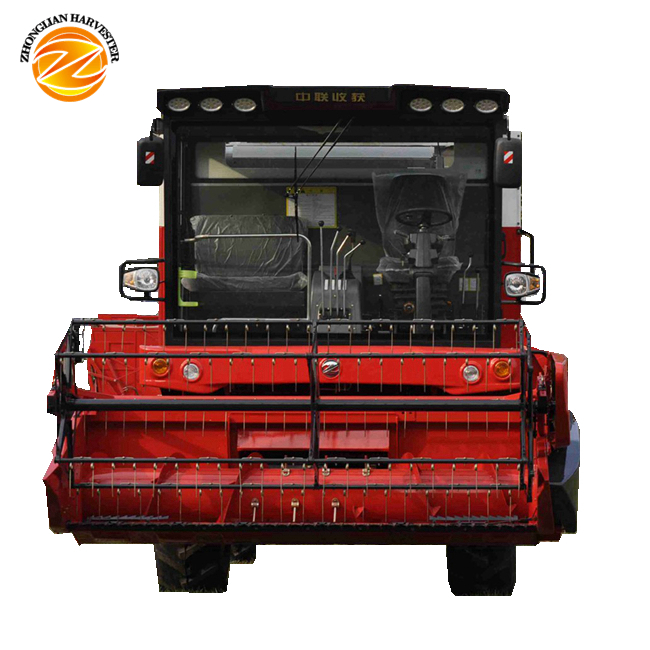

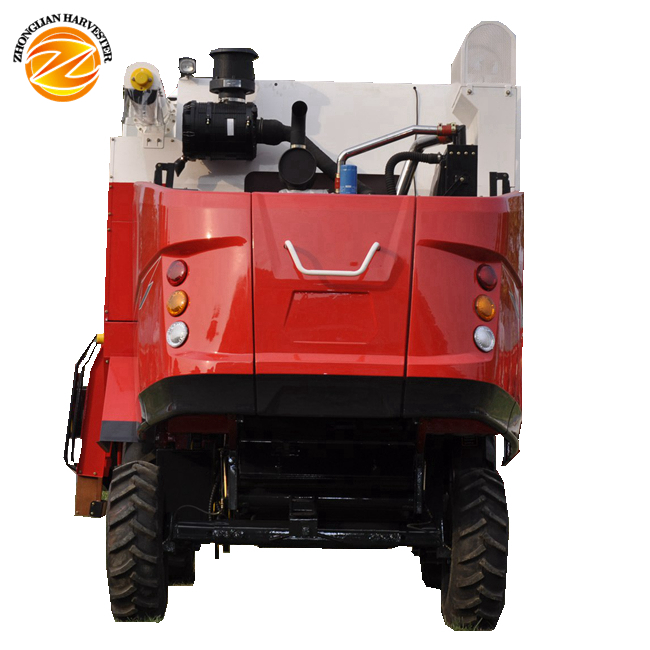

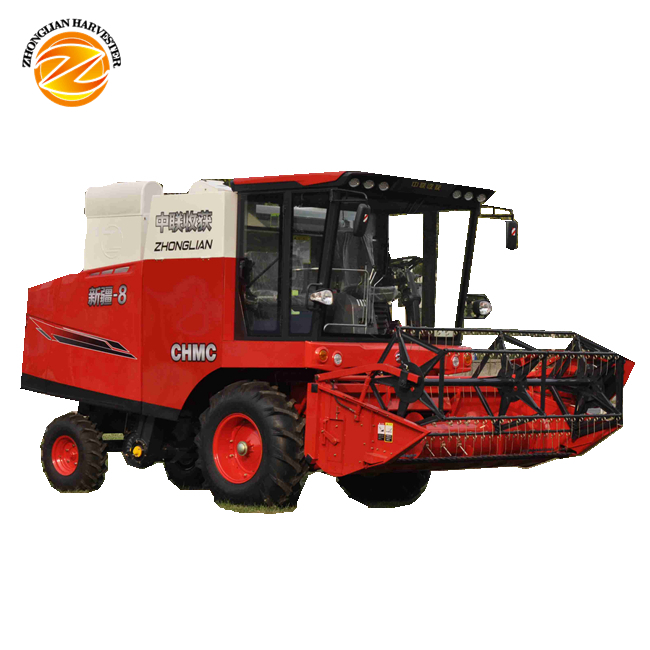

Model 4LZ-8B1 self-propelled wheeled grain combine harvester mainly harvests wheat. It is characterized by compact structure design, convenient operation, flexible maneuverability, and is especially suitable for small plots, high water content and special dry crop operations. The machine adopts double-drum threshing of cut-flow and axial-flow type, air-screen multi-stage cleaning, and secondary cleaning of surplus. The speed of the drum is a stepped speed change (special pulley is optional), and the walking is a four-speed stepless speed change. The hydraulic and electrical systems are well designed, with strong adaptability for field operations and long-distance transfer, high reliability, and performance indicators that meet the requirements of relevant national professional standards.
Grain Combine
1. It adopted double rollers, cutting roller is in front, axial flow roll is in the back. It obtains good separate effect , lower break rate, little machine damage and good harvest effect.
2. Widen elevator,increase granary, reduce unloading rice times.

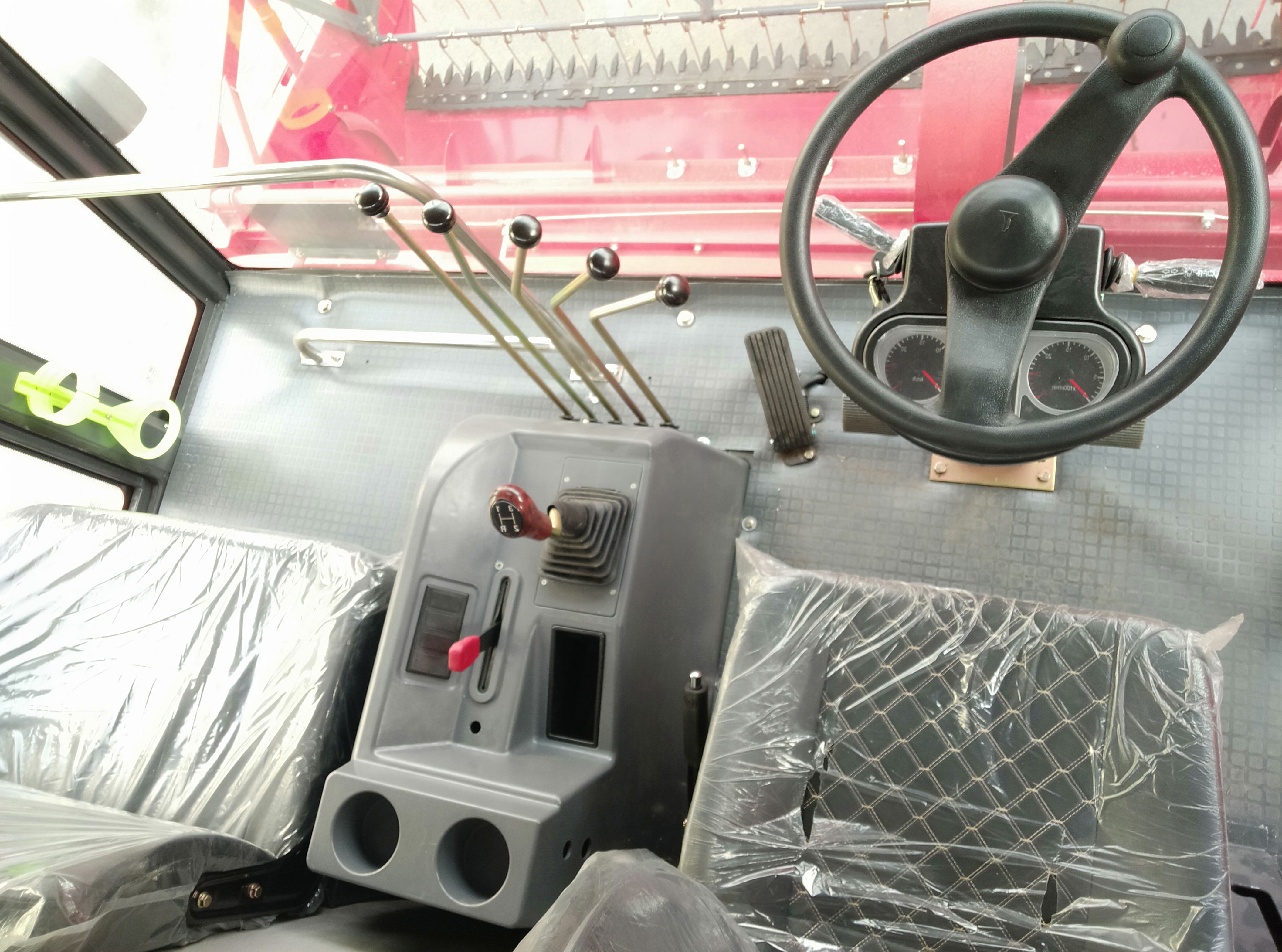

3. Sealed cab, reduce the noise, make the driver feel more comfortable, Reserve a termination to connect air conditioner or fan.
4. Adopt automatic high-level unloading grain tank,which is suitable for different grain transportation vehicles, labor-saving and quickly unloading.
5. With a larger water tank,and a new design radiator cover, to ensure the engine will not be high temperature after a long time working under a harsh environment.
6. It adopted Vortex fan, advanced vibrate cleaning technology and double riser technology. The separate and recovery device could separate beans effectively.
7. Enlarge the threshing cabin , lengthen the threshing drum, increase large feeding quantity,high production efficiency.
FAQ:
Q1. How long is the delivery date?
A: In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.
Q2. How can I visit your factory?
A: We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient
Q3: What’s your mail products?
A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.
Q4. What is your warranty?
A: The warranty is 1 year for whole machine without wearing parts. And if any part broken,we can send you parts directly from our factory.
Q5: How is the quality of the harvesrter?
A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.
Packaging & Shipping
1. We need to apart some parts from the whole machine,such as the header,cab,peeling machine,tank and so on,then it can load to the container,one 40′ high container can loading one set.
2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.
After-Sales Service
1. Training how to install and use the machine,engineers available to service machinery overseas.
2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.
Our factor:
Zhengzhou Zhonglian Harvest Machinery Co., Ltd is a professional combine harvester manufacturing company which integrates product research,spare parts producing ,complete machine assembling and product after-sale service. The company was founded in 1995.The company products has 7 series and in total more than 100 types which cover peanut harvester,wheat harvester,rice harvester,corn harvester ,soybean harvester ,corn seeds harvester and silage harvester.In international market,the products mainly are exported to South Asia,Southeast Asia,West Asia,Africe and Middle Europe.
